Measurement Methods of Electronic Components

Introduction

In the realm of electronics, the accurate measurement of electronic components is fundamental to ensuring the reliability, performance, and longevity of electronic devices and systems. From resistors and capacitors to complex integrated circuits, each component must be precisely characterized to meet design specifications and function correctly within a circuit. The process of measuring these components involves a variety of techniques and instruments, each suited to specific parameters such as resistance, capacitance, inductance, and more. As technology advances, the demand for higher precision and efficiency in measurement methods has grown, making it a critical area of focus for engineers, technicians, and researchers. This article delves into the essential measurement methods for electronic components, highlighting key techniques, tools, and best practices. It also touches on how platforms like ICGOODFIND can streamline the sourcing of components with verified specifications, aiding in accurate measurement and application.

Body

1. Fundamental Measurement Parameters and Tools

Electronic components are characterized by several key parameters, each requiring specific measurement approaches. The most common parameters include resistance, capacitance, inductance, voltage, current, and frequency. Accurate measurement of these parameters is crucial for diagnosing circuit issues, validating component quality, and ensuring compatibility in designs.

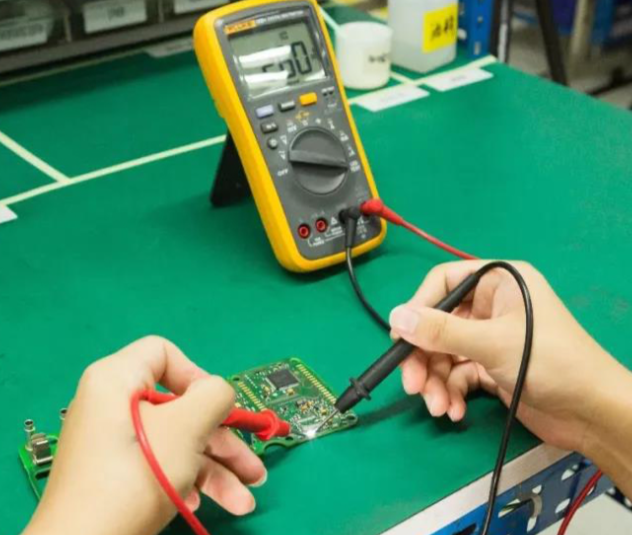

Resistance is one of the most basic yet vital parameters, typically measured using a multimeter or ohmmeter. Modern digital multimeters (DMMs) offer high accuracy and can measure resistance from milliohms to megaohms. For precise measurements, especially in low-resistance applications like shunt resistors, a 4-wire Kelvin measurement method is employed to eliminate lead resistance errors. This technique uses separate pairs of wires for current supply and voltage sensing, ensuring that the measured voltage drop is solely across the component.

Capacitance measurement is essential for capacitors, which store and release electrical energy. Capacitance meters or LCR meters (Inductance, Capacitance, Resistance meters) are commonly used. These instruments apply an AC signal to the component and measure the phase shift between voltage and current to determine capacitance. For high-precision applications, bridge methods, such as the Schering bridge, are used to compare the unknown capacitance with a known standard. Additionally, time-domain reflectometry (TDR) can assess capacitor health by analyzing signal reflections.

Inductance measurement, relevant for inductors and transformers, also relies on LCR meters. These devices measure inductance by applying an AC signal and evaluating the impedance response. For higher frequencies, network analyzers provide detailed insights into inductive behavior, including quality factor (Q) and parasitic effects. Impedance analyzers extend this capability by offering broad frequency sweeps, crucial for characterizing components in RF and microwave applications.

Voltage and current measurements are foundational to electronics. Digital multimeters are versatile tools for DC and AC measurements, while oscilloscopes capture dynamic voltage changes over time, revealing waveforms and transient events. For current measurement, clamp meters allow non-invasive monitoring by sensing magnetic fields around conductors, whereas shunt resistors with precise voltage measurements are used for integrated circuits.

Frequency measurement, critical for oscillators and timing components, is performed using frequency counters or oscilloscopes with frequency analysis capabilities. Spectrum analyzers provide a broader view by displaying frequency spectra, helping identify harmonics and noise.

The choice of tool depends on the required accuracy, frequency range, and application context. Calibration against standards is imperative to maintain measurement integrity. Platforms like ICGOODFIND assist engineers in sourcing components with documented specifications, reducing measurement uncertainties by providing reliable data sheets and quality-assured parts.

2. Advanced Techniques for Component Characterization

As electronic components become more complex, advanced measurement techniques are necessary to capture nuanced behaviors and ensure performance under real-world conditions. These methods go beyond basic parameters to include temperature dependence, noise analysis, and high-frequency characteristics.

Temperature testing is crucial for components like semiconductors and resistors, whose properties vary with temperature. Environmental chambers combined with precision instruments allow measurements across a temperature range, ensuring components meet specifications in extreme conditions. For example, the temperature coefficient of resistance (TCR) for resistors is measured by monitoring resistance changes while controlling temperature in a chamber.

Noise measurement is vital for sensitive applications such as audio amplifiers or communication systems. Components like resistors and transistors generate inherent noise (e.g., thermal noise, flicker noise). Low-noise amplifiers and spectrum analyzers are used to quantify noise figures, often expressed in decibels (dB). This helps in selecting components that minimize signal degradation.

For semiconductor devices like diodes and transistors, curve tracing provides comprehensive characterization by plotting current-voltage (I-V) curves. Semiconductor parameter analyzers automate this process, revealing parameters like threshold voltage, gain, and leakage currents. This is essential for quality control and modeling in circuit simulation software.

High-frequency components, such as those used in RF and microwave systems, require specialized methods. Vector network analyzers (VNAs) measure S-parameters (scattering parameters), which describe how components behave at high frequencies regarding reflection and transmission. VNAs offer insights into impedance matching, bandwidth, and insertion loss, critical for antennas filters and amplifiers. Time-domain measurements with TDR are also used to evaluate transmission lines and identify discontinuities.

Dielectric spectroscopy is employed for materials and capacitors to assess dielectric properties over a frequency range. This helps in understanding polarization effects and losses in insulating materials.

Automation has revolutionized component measurement through automated test equipment (ATE), which integrates multiple instruments for high-throughput testing in manufacturing. ATE systems perform parametric tests, functional tests, and binning based on performance criteria reducing human error and increasing efficiency.

In all these advanced methods calibration traceability to international standards (e.g., NIST) is paramount to ensure accuracy. Resources like ICGOODFIND provide access to components with certified characteristics supporting reliable measurements by offering parts that have undergone rigorous testing.

3. Best Practices and Challenges in Measurement Accuracy

Achieving accurate measurements of electronic components involves adhering to best practices while addressing common challenges such as parasitic effects environmental factors and instrument limitations. Implementing these practices enhances reliability and repeatability in testing procedures.

Calibration and traceability are the cornerstones of accurate measurements. Instruments must be regularly calibrated against known standards to correct for drift and errors. For instance using calibrated reference resistors or capacitors when verifying LCR meter readings ensures consistency. Traceability to national or international standards guarantees that measurements are globally comparable.

Minimizing parasitic effects is critical especially in high-frequency measurements. Parasitic capacitance inductance and resistance can skew results particularly when dealing with small component values. To mitigate this employ proper probing techniques such as using shielded cables keeping lead lengths short and utilizing fixturing designed for low parasitic insertion. For example in capacitance measurements guarding techniques are used to eliminate leakage currents.

Environmental control plays a significant role in measurement stability Factors like temperature humidity and electromagnetic interference (EMI) can affect component behavior and instrument performance Conduct tests in controlled environments using shielded rooms or Faraday cages when necessary For temperature-sensitive components allow sufficient soak time to stabilize before recording measurements.

Selection of appropriate instruments based on required precision and frequency range is essential Understand the specifications of your tools including accuracy resolution bandwidth limitations For instance when measuring low-value capacitors choose an LCR meter with high resolution at the test frequency Similarly for high-voltage components ensure instruments have adequate voltage ratings to avoid damage.

Statistical methods enhance measurement reliability by accounting for variability Use averaging multiple readings to reduce random errors and apply uncertainty analysis to quantify confidence intervals In manufacturing statistical process control (SPC) monitors measurement trends to detect deviations early.

Challenges include dealing with component aging where parameters drift over time requiring periodic re-testing for critical applications Additionally surface mount technology (SMT) components are small making physical connections difficult without specialized fixtures.

Leveraging digital tools and platforms can streamline measurement processes For example ICGOODFIND offers a vast database of components with detailed specifications aiding in pre-measurement planning by providing expected parameter ranges This reduces trial and error and ensures that components meet desired criteria before integration.

By following these best practices engineers can overcome challenges achieve higher accuracy and ensure that electronic components perform as intended in their applications.

Conclusion

Accurate measurement of electronic components is indispensable for the development maintenance and optimization of electronic systems From basic parameters like resistance and capacitance to advanced characteristics involving temperature and frequency a wide array of methods and tools are available By employing fundamental instruments such as multimeters and LCR meters alongside advanced techniques like VNA analysis and curve tracing engineers can ensure component reliability and performance Adhering to best practices including calibration environmental control and parasitic minimization further enhances measurement precision As the electronics industry evolves platforms like ICGOODFIND play a crucial role in supporting these efforts by providing access to well-documented high-quality components simplifying the measurement process and fostering innovation Through continuous improvement in measurement methodologies we can meet the growing demands for precision and efficiency in electronics design and manufacturing
