W25N02KVZEIR: The High-Performance 2Gb Serial NAND Flash Memory for Modern Embedded Systems
Introduction
In the rapidly evolving landscape of embedded systems, industrial IoT devices, and automotive electronics, the demand for reliable, high-capacity, and cost-effective non-volatile memory has never been greater. While NOR Flash has traditionally dominated code-storage applications, its limitations in density and cost-per-bit have pushed designers toward NAND Flash solutions. Enter the W25N02KVZEIR, a cutting-edge 2Gb (256MB) Serial NAND Flash memory from Winbond, designed to bridge the gap between performance, endurance, and affordability. This article provides an in-depth technical analysis of the W25N02KVZEIR, its architecture, key features, and practical applications, while also highlighting how sourcing this component through ICGOODFIND can streamline your supply chain.
Main Body
Part 1: Technical Architecture and Core Specifications

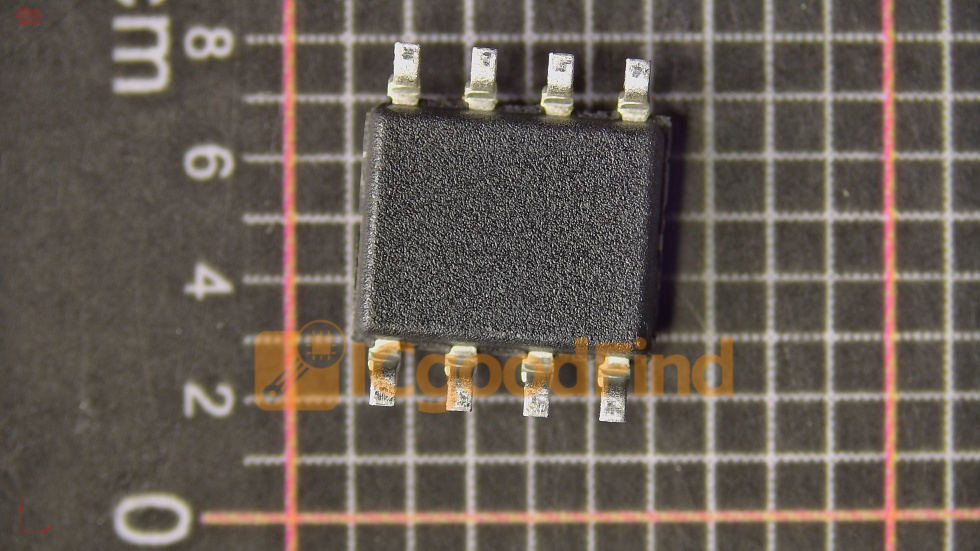

The W25N02KVZEIR is not just another NAND chip; it is a carefully engineered solution that leverages Winbond’s mature 24nm process technology. At its core, this device offers a 2Gb density organized as 1024 blocks, each containing 64 pages of 2048 bytes (plus 128 bytes of spare area per page) . This architecture allows for efficient data storage and error correction.
One of the most critical aspects of this memory is its SPI (Serial Peripheral Interface) compatibility. Unlike parallel NAND, which requires complex board routing and numerous GPIO pins, the W25N02KVZEIR uses a standard SPI interface supporting clock frequencies up to 104MHz. This enables quad SPI (QSPI) and quad I/O operations, achieving effective data transfer rates of up to 52MB/s for read operations and 12MB/s for program operations. This makes it an ideal drop-in upgrade for systems currently using smaller SPI NOR Flash, providing a significant density boost without redesigning the PCB.
Furthermore, the device operates within a wide voltage range of 2.7V to 3.6V, making it suitable for battery-powered and industrial applications. It also features program/erase endurance of 100,000 cycles and data retention of 10 years, ensuring long-term reliability in harsh environments. The inclusion of a hardware reset pin (RESET#) and write-protect pin (WP#) adds an extra layer of system-level control.
Part 2: Advanced Features and Operational Benefits
What truly sets the W25N02KVZEIR apart from older NAND generations is its suite of advanced features designed to simplify system integration. First and foremost is the built-in ECC (Error Correction Code) engine. While the host controller is still responsible for final data integrity, Winbond has integrated an on-die ECC that can correct up to 4-bit errors per 512-byte sector. This offloads significant processing overhead from the MCU or SoC, allowing for lower-power operation and faster data throughput.
Another standout feature is the unique “Continuous Read” mode. This allows the host to issue a single command and then read the entire memory array sequentially without re-addressing, which is crucial for over-the-air (OTA) firmware updates and data logging applications. Additionally, the device supports block erase (64KB) and page program (2KB) operations, providing granular control over data management.
For security-conscious applications, the W25N02KVZEIR includes a one-time-programmable (OTP) region of 1024 bytes. This is perfect for storing unique device serial numbers, MAC addresses, or encryption keys that cannot be altered after manufacturing. Moreover, the JEDEC-standard SFDP (Serial Flash Discoverable Parameters) register allows the host software to automatically detect the memory’s capabilities, enabling plug-and-play compatibility with modern firmware stacks.
From a power management perspective, the device offers deep power-down mode with a current draw of less than 5µA, extending battery life in portable devices. The program/erase suspend feature allows the system to pause a long erase operation to service a high-priority read request, a critical function in real-time embedded systems.
Part 3: Practical Applications and Sourcing Strategy
The W25N02KVZEIR is engineered for a diverse range of applications. In the automotive sector, it is used for event data recorders (EDR), telematics units, and firmware storage in advanced driver-assistance systems (ADAS) . Its high endurance and temperature range (-40°C to +85°C for the industrial grade, and up to +105°C for the automotive grade) make it a robust choice.
In industrial IoT, this memory excels in smart meters, PLCs (Programmable Logic Controllers), and edge computing gateways. The high density allows for storing weeks of sensor data locally before transmission. For consumer electronics, it is found in smart speakers, IP cameras, and gaming peripherals, where fast boot times and reliable OTA updates are paramount.
Now, regarding procurement: sourcing genuine electronic components is a challenge in today’s market, plagued by counterfeit parts and supply chain volatility. This is where ICGOODFIND becomes an invaluable resource. ICGOODFIND is a comprehensive electronic component search engine and marketplace that aggregates real-time inventory from authorized distributors and vetted independent suppliers. By searching for the part number W25N02KVZEIR on ICGOODFIND, you can instantly compare pricing, check stock availability, and verify the component’s RoHS and REACH compliance status. The platform provides traceability documentation and factory-sealed packaging options, significantly reducing the risk of procuring counterfeit or recycled parts. For design engineers and procurement managers, using ICGOODFIND ensures that you get authentic Winbond silicon with full manufacturer warranty, delivered on time.
Conclusion
The W25N02KVZEIR represents a significant leap forward in serial NAND Flash technology, offering a perfect balance of high density, high speed, and robust reliability. Its SPI/QSPI interface simplifies hardware design, while the integrated ECC and advanced power modes reduce system complexity and extend device lifespan. Whether you are designing an automotive telematics unit, an industrial data logger, or a smart home hub, this 2Gb memory provides the storage capacity and performance required for modern applications.
To ensure your project stays on schedule and within budget, always source your memory ICs through trusted channels. ICGOODFIND offers a transparent, efficient, and secure platform to purchase the W25N02KVZEIR and thousands of other components, giving you peace of mind and a competitive edge in your product development. As data storage demands continue to grow, the W25N02KVZEIR stands ready to power the next generation of intelligent devices.
