Common Electronic Component Packages

Introduction

Electronic component packages are the physical enclosures that house semiconductor devices and other electronic components, serving as the critical interface between the internal circuitry and the external printed circuit board (PCB). The selection of an appropriate package type is not merely a mechanical consideration but a fundamental aspect of electronic design that influences electrical performance, thermal management, manufacturability, reliability, and the overall size of the final product. From the early days of through-hole technology to the modern era of ultra-miniature surface-mount devices, packaging technology has continuously evolved to meet the demands of higher performance, greater functionality, and smaller form factors. This article provides a comprehensive overview of the most common electronic component packages, exploring their characteristics, advantages, and typical applications to guide engineers, procurement specialists, and electronics enthusiasts in making informed decisions for their projects. For those looking to source these components efficiently, platforms like ICGOODFIND offer a streamlined experience to find and compare a vast array of parts from numerous suppliers.

Main Body

1. Through-Hole Technology (THT) Packages

Through-Hole Technology (THT) represents one of the earliest and most robust methods of mounting components onto a PCB. Components with THT packages have long leads that are inserted into drilled holes on the PCB and soldered onto pads on the opposite side. This creates a very strong mechanical bond, making THT ideal for applications subject to high mechanical stress, high power, or high heat.

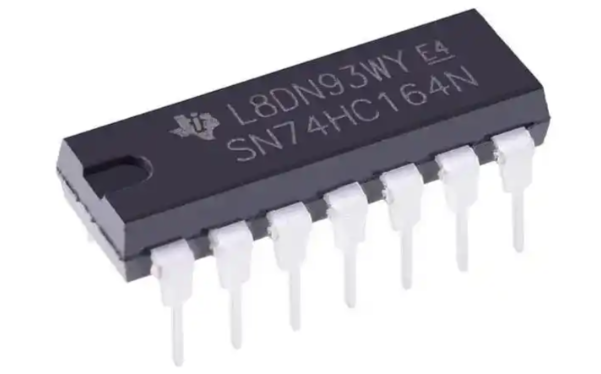

The most ubiquitous THT package is the Dual In-line Package (DIP). Characterized by two parallel rows of leads, DIPs are commonly used for integrated circuits (ICs) like microcontrollers, operational amplifiers, and logic chips. Their relatively large size makes them easy to handle, solder manually (making them perfect for prototyping and education), and often include a notch or dot to indicate pin 1. However, their size is also their main drawback, as they consume a significant amount of board space compared to modern alternatives.

Other notable THT packages include: * TO-220 / TO-247: These are standard packages for power transistors, voltage regulators, and power amplifiers. Their metal tab is designed to be attached to a heatsink, making them essential for managing heat dissipation in high-power circuits. * Axial Lead and Radial Lead Packages: These are typically used for passive components like resistors, capacitors, and diodes. Axial components have leads on each end (running along the component’s axis), while radial components have leads protruding from the same side, allowing for a lower profile on the PCB.

While largely superseded by SMT in mass production due to automation and space constraints, THT remains vital in specific niches where reliability and ease of manual assembly are paramount.

2. Surface-Mount Technology (SMT) Packages

Surface-Mount Technology (SMT) has become the dominant packaging and assembly method in modern electronics. SMT components, or Surface-Mount Devices (SMDs), are placed directly onto the surface of the PCB and soldered to pads without the need for drilled holes. This allows for significantly higher component density, automated assembly, and better high-frequency performance due to reduced lead inductance.

A wide variety of SMT packages exist, catering to different levels of complexity: * Two-Terminal Packages: These are for basic passive components. * Rectangular Passive (RPC) Packages: These include standard sizes like 0201, 0402, 0603, 0805, and 1206. The numbers represent length and width in hundredths of an inch (e.g., 0603 is 0.06” x 0.03”) or in millimeters (metric 1608 is 1.6mm x 0.8mm). Smaller sizes enable incredibly compact designs. * Integrated Circuit (IC) Packages: * Small Outline Transistor (SOT): A family of small packages used for transistors and small ICs. * Small Outline Integrated Circuit (SOIC): The surface-mount cousin of the DIP, offering a much smaller footprint with the same pin spacing and count. * Quad Flat Pack (QFP): Features leads on all four sides, allowing for a high pin count in a relatively compact area. Variants include Low-profile QFP (LQFP) and Thin QFP (TQFP). * Ball Grid Array (BGA): A crucial advancement for complex ICs like microprocessors and FPGAs. Instead of leads, a BGA package has an array of solder balls on its underside that connect to the PCB. This allows for an extremely high number of interconnections in a minimal area but requires sophisticated X-ray inspection for quality control. * Quad Flat No-Lead (QFN): Similar to BGAs but with exposed copper pads instead of balls. The pads are soldered directly to the PCB, providing an excellent thermal and electrical connection, making QFN packages ideal for space-constrained applications requiring good heat dissipation, such as RF modules and power management ICs.

The shift to SMT has been driven by the relentless pursuit of miniaturization, performance, and cost-effective mass production.

3. Factors Influencing Package Selection and Future Trends

Choosing the right component package is a multi-faceted decision that extends beyond mere physical dimensions. Engineers must consider a balance of several critical factors:

• Board Space and Density: The primary driver for SMT adoption. Smaller packages like 0402 resistors or QFNs allow for incredibly dense and complex designs in consumer electronics like smartphones.
• Electrical Performance: Package parasitics (resistance, capacitance, and inductance) can severely impact high-frequency circuit performance. Packages with shorter leads or leadless designs (like QFN or BGA) minimize parasitic inductance, making them superior for RF and high-speed digital applications.
• Thermal Management: High-power components generate heat that must be dissipated to prevent failure. Packages like the TO-220 (THT) or D2PAK (SMT) are designed with integral metal tabs for attaching heatsinks. QFN packages also excel here due to their exposed thermal pad.
• Manufacturing and Cost: THT assembly is more labor-intensive and less automatable than SMT. SMT allows for faster, cheaper production at scale. However, the complexity of soldering fine-pitch QFPs or inspecting BGAs can increase manufacturing costs and require more advanced equipment.
• Prototyping and Rework: DIP packages are famously easy to prototype with on a breadboard or solder by hand. Fine-pitch SMT packages are extremely difficult to hand-solder and rework without specialized tools.

Looking forward, packaging trends continue to push the boundaries. System-in-Package (SiP) technology integrates multiple dies (e.g., a processor, memory, and RF transceiver) into a single package, acting as a complete functional system. Similarly, Wafer-Level Packaging (WLP) allows for packaging at the wafer level before dicing, resulting in packages that are nearly the same size as the silicon die itself. These advancements are crucial for powering the next generation of IoT devices, wearables, and advanced computing systems.

Conclusion

The world of electronic component packages is vast and integral to the functionality and form of every electronic device we use. Understanding the differences between classic through-hole packages like DIP and robust TO-220s versus modern surface-mount solutions like compact QFNs and high-density BGAs is essential for successful electronic design. The choice hinges on a careful evaluation of electrical requirements, thermal needs, available board space, and manufacturing capabilities. As technology progresses towards even greater integration and miniaturization with SiP and WLP, the role of innovative packaging will only become more critical. For engineers navigating this complex landscape and sourcing these components, utilizing a comprehensive distributor network is key. Platforms such as ICGOODFIND provide invaluable access to a global inventory, simplifying the procurement process for everything from basic resistors to advanced BGA-packaged processors.
