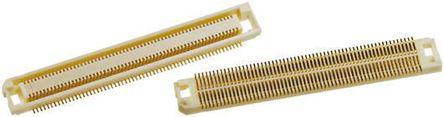

Model FX8-140S-SV(21)

Description Hirose FunctionMAX FX8 FunctionalMAX FX8 and FX8C 0.6mm SMT connectors are used for parallel board to board connections. These FunctionalMAX FX8 and FX8C connectors have high-speed transmission capabilities of up to 3.125 Gbit/s and excellent signal integrity characteristics. The built-in mating guide ribs of these high-speed FX8 connectors allow for a self alignment tolerance of+/-0.6 mm, making mating easier and achieving design flexibility. These high-speed FX8 BTB connectors have guide posts at the bottom with different diameters and positioning functions, which help with calibration on printed circuit boards and prevent misconnection. The contacts of these FX8 BTB connectors have optimized spring deflection design to enhance reliability. ###Features and advantages: High speed transmission speed of 3.125 Gbit/s, built-in guide ribs allow for+/-0.6 mm deviation, ensuring easy mating with bosses, used for calibrating 2 mm wiping distance on printed circuit boards, for power continuity contacts, with spring deflection design, for enhancing reliability SMT common surface, with a coplanar tolerance of less than 0.1 mm in the soldering area. The stacking height range is 3 mm to 4 mm (FX 8 series) and 5 mm to 16 mm (FX8C series). These FunctionalMAX FX8 and FX8C 0.6 mm board to board connectors are suitable for various applications. Applications include servers and broadcasting equipment, industrial equipment, medical equipment, and POS terminal blocks. # # # FunctionalMAX brand FunctionalMAX board to board connectors are designed to meet the requirements of advanced technology in the industrial market and provide high performance and maximum functionality. The FunctionalMAX series includes connectors with floating designs and connectors with high-speed transmission rates. High transmission rate connectors are designed based on differential transmission systems and can provide high-speed signals and excellent noise resistance. The FunctionalMAX series board to board connectors provide excellent performance in variou

Brand: Hirose Electric

Packaging

Delivery time

Packaging method Tube

Standard packaging quantity 1

5+:

$ 17.4470

50+:

$ 16.7014

200+:

$ 16.2839

500+:

$ 16.1795

1000+:

$ 16.0751

2500+:

$ 15.9558

5000+:

$ 15.8813

7500+:

$ 15.8067

Price	$ 17.4470	$ 16.7014	$ 16.2839	$ 16.1795	$ 16.0751
Start batch production	5+	50+	200+	500+	1000+

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(7866) Minimum order quantity(5)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/number of contacts: 140

Technical parameters/polarity: Female

Technical parameters/Contact electroplating: Gold

Technical parameters/rated current: 0.4 A

Technical parameters/insulation resistance: 1000 MΩ

Technical parameters/number of rows: 2

Technical parameters/Flammability level: UL 94 V-0

Technical parameters/number of pins: 140

Technical parameters/Contact resistance: <45mΩ @100mA

Technical parameters/number of plug and unplug cycles: 50

Technical parameters/rated current (Max): 0.4 A

Technical parameters/operating temperature (Max): 85 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/rated voltage (Max): 100 VAC

Technical parameters/rated voltage: 100 VAC

Technical parameters/Contact resistance (Max): 45 mΩ

Encapsulation parameters/installation method: Surface Mount

Packaging parameters/pin spacing: 600 µm

External dimensions/length: 48.6 mm

External dimensions/width: 5.6 mm

External dimensions/height: 2.25 mm

External dimensions/pin spacing: 600 µm

Physical parameters/shell color: Brown, Light

Physical parameters/contact material: Phosphor Bronze

Physical parameters/shell material: Plastic

Other/Product Lifecycle: Active

Other/Packaging Methods: Tube

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2014/06/16

Alternative material

	Model	Brand	Similarity	Encapsulation	Introduction	Data manual
	FX8-140S-SV(22)	Hirose Electric	完全替代	-	HIROSE(HRS) FX8-140S-SV(22) 堆叠板连接器, FunctionMax FX8系列, 140 触点, 插座, 0.6 mm, 表面安装 , 2 排	PDF
