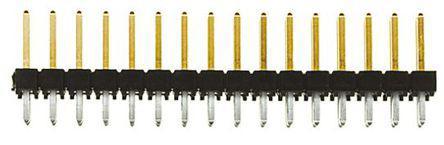

Model TSW-116-07-L-D
Description 2.54mm Square column socket terminal block clamp - TSW series TSW series printed circuit board through-hole board to board square column socket terminal block clamp, with a pitch of 2.54mm, black glass filled polyester insulator and phosphor bronze terminal block, with gold-plated contacts. These printed circuit board to board through-hole square column socket wiring terminal clamps offer various configurations, including single row and double row, straight and right angle, and can choose coating and column length. The working temperature range of these TSW series printed circuit board through-hole socket terminal blocks is -55 ° C to 125 ° C. TSW printed circuit board sockets with TSW-xxx-xx-S part numbers are single row. The TSW printed circuit board socket with part number TSW-xxx-x-x-D is double row. The pillar of the TSW printed circuit board socket with TSW-xxx-xx-L-x part number is 0.25 μ m gold-plated, and the tail wire is matte tin plated. The pillars of TSW printed circuit board sockets with TSW-xxx-xx-G-x part numbers are 0.25 μ m gold-plated, while the rest are thinly gold-plated. The terminal height of the TSW printed circuit board socket with part number TSW-xxx-07-x-x is 5.84mm and the tail length is 2.54mm. The terminal height of the TSW printed circuit board socket with part number TSW-xxx-08-x-x is 5.84mm and the tail length is 5.08mm. The terminal height of the TSW printed circuit board socket with part number TSW-xxx-14-x-x-x is 8.13mm and the tail length is 2.79mm. The terminal height of the TSW printed circuit board socket with part number TSW-xxx-17-x-x is 15.74mm and the tail length is 2.79mm. The height of the wiring terminal is 5.84mm and the length of the tail wire is 2.92mm. The wiring terminal height of the TSW printed circuit board socket with TSW-xxx-26-x-x part number is 5.84mm and the length of the tail wire is 3.20mm Series printed circuit board through-hole board to board square column socket terminal block can be matched with the following items: BCS standard box socket - pleas
Product QR code
Brand: Samtec
Packaging
Delivery time
Packaging method Bag
Standard packaging quantity 1
15.18  yuan 15.18yuan
5+:
$ 17.7583
50+:
$ 16.9994
200+:
$ 16.5744
500+:
$ 16.4681
1000+:
$ 16.3619
2500+:
$ 16.2405
5000+:
$ 16.1646
7500+:
$ 16.0887
Quantity
5+
50+
200+
500+
1000+
Price
$17.7583
$16.9994
$16.5744
$16.4681
$16.3619
Price $ 17.7583 $ 16.9994 $ 16.5744 $ 16.4681 $ 16.3619
Start batch production 5+ 50+ 200+ 500+ 1000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(5840) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 32

Technical parameters/polarity: Male

Technical parameters/Contact electroplating: Gold

Technical parameters/rated current: 7.6 A

Technical parameters/number of rows: 2

Technical parameters/number of pins: 32

Technical parameters/rated current (Max): 6.3A/contact

Technical parameters/rated voltage: 550 VAC

Encapsulation parameters/installation method: Through Hole

Packaging parameters/pin spacing: 2.54 mm

External dimensions/length: 40.6 mm

External dimensions/width: 5.08 mm

External dimensions/height: 8.38 mm

External dimensions/pin spacing: 2.54 mm

Physical parameters/shell color: Black

Physical parameters/contact material: Phosphor Bronze

Physical parameters/operating temperature: -55℃ ~ 125℃

Physical parameters/shell material: Plastic

Other/Product Lifecycle: Active

Other/Packaging Methods: Bag

Other/Manufacturing Applications: Industrial, -

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/06/15

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
TSW-116-07-G-D-007 TSW-116-07-G-D-007 Samtec 完全替代
Conn Unshrouded Header HDR 32POS 2.54mm Solder ST Thru-Hole
TSW-116-07-T-D-007 TSW-116-07-T-D-007 Samtec 功能相似
Conn Unshrouded Header HDR 32POS 2.54mm Solder ST Thru-Hole
