Technical parameters/halogen-free state: | Halogen Free |
|
Technical parameters/number of channels: | 1 |
|
Technical parameters/drain source resistance: | 11.5 mΩ |
|
Technical parameters/dissipated power: | 3.2W (Ta), 21W (Tc) |
|
Technical parameters/drain source voltage (Vds): | 60 V |
|
Technical parameters/Leakage source breakdown voltage: | 60 V |
|
Technical parameters/rise time: | 28 ns |
|
Technical parameters/Input capacitance (Ciss): | 1462pF @25V(Vds) |
|
Technical parameters/descent time: | 22 ns |
|
Technical parameters/operating temperature (Max): | 175 ℃ |
|
Technical parameters/operating temperature (Min): | -55 ℃ |
|
Technical parameters/dissipated power (Max): | 3.2W (Ta), 21W (Tc) |
|
Encapsulation parameters/installation method: | Surface Mount |
|
Package parameters/number of pins: | 8 |
|

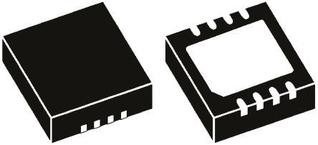

Encapsulation parameters/Encapsulation: | WDFN-8 |
|
Dimensions/Packaging: | WDFN-8 |
|
Physical parameters/operating temperature: | -55℃ ~ 175℃ (TJ) |
|
Other/Product Lifecycle: | Active |
|
Other/Packaging Methods: | Tape & Reel (TR) |
|
Compliant with standards/RoHS standards: | RoHS Compliant |
|
Compliant with standards/lead standards: | Lead Free |
|
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
NTMFS5844NLT1G
|
ON Semiconductor | 功能相似 | DFN-8 |
60A,60V,N沟道功率MOSFET
|
||
NVTFS5820NLTAG
|
ON Semiconductor | 类似代替 | WDFN-8 |
ON SEMICONDUCTOR NVTFS5820NLTAG MOSFET Transistor, N Channel, 11 A, 60 V, 0.0101 ohm, 10 V, 2.3 V 新
|
||
NVTFS5820NLTWG
|
ON Semiconductor | 类似代替 | WDFN-8 |
N 通道功率 MOSFET，60V，ON Semiconductor ### MOSFET 晶体管，ON Semiconductor
|
