Model 16-02-0086

Description MOLEX 16-02-0086 触芯, C-Grid®, SL 70058系列, 母, 压接, 22 AWG, 镀锡触芯, 70066, 70450系列外壳连接器

Brand: Molex

Packaging

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/number of contacts:	1
Technical parameters/polarity:	Female
Technical parameters/line gauge:	22.0 AWG
Technical parameters/Contact electroplating:	Tin
Technical parameters/rated current:	3 A
Technical parameters/halogen-free state:	Low Halogen
Technical parameters/Contact resistance:	15 mΩ
Technical parameters/rated current (Max):	3 A
Technical parameters/operating temperature (Max):	105 ℃
Technical parameters/operating temperature (Min):	-40 ℃
Technical parameters/rated voltage (Max):	250 VAC
Technical parameters/rated voltage:	250 V
Technical parameters/Contact resistance (Max):	15 mΩ
Dimensions/Length:	12.88 mm
Dimensions/Width:	1.91 mm
Dimensions/Height:	2.03 mm
Physical parameters/contact material:	Phosphor Bronze
Physical parameters/materials:	Phosphor Bronze
Physical parameters/operating temperature:	-40℃ ~ 105℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tape & Reel (TR)
Other/Manufacturing Applications:	Industrial, automotive, consumer electronics, medical, communication and networking, commercial vehicle use
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with standards/ELV standards:	Compliant
Compliant with the REACH SVHC standard:	No SVHC
Customs information/ECCN code:	EAR99
Customs information/HTS code:	8536904000

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
104479-8	TE Connectivity	功能相似	-	TE Connectivity AMPMODU Short Point 压接扣入式插座触点一系列的 TE Connectivity AMPModU 短点触点，设计用于与短至 4.29mm 的 0.64mm² 支柱配接，可扣合到单排 AMPMODU MTE 外壳中以提供完整的电线压接系统，或只是用作备用触点。这些短点压接咬接式插座触点由铜合金制成，可选镀金或镀锡，支持最大电线绝缘直径 1.52mm。关于 Short Point 插座外壳，请参见库存号 797-3160（典型）。 ### 2.54mm TE Connectivity AMPMODU Short Point 系列	PDF

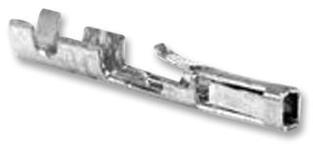

16-02-0102	Molex	完全替代		MOLEX 16-02-0102 触芯, C-Grid®, SL系列, 母, 压接, 22 AWG, 镀锡触芯, SL Series Connectors	PDF
86492-9	TE Connectivity	功能相似	-	TE Connectivity AMPMODU Mod IV 触点 TE Connectivity AMPMODU Mod IV 触点系列。 ### 2.54mm TE Connectivity AMPMODU Mod IV 系列	PDF
86492-9	Tyco Electronics	功能相似		TE Connectivity AMPMODU Mod IV 触点 TE Connectivity AMPMODU Mod IV 触点系列。 ### 2.54mm TE Connectivity AMPMODU Mod IV 系列
