Model VS-25F60
Description VISHAY VS-25F60 二极管模块, 600 V, 25 A, 900 mV, VS-25 Series
Product QR code
Brand: Vishay Semiconductor
Packaging DO-203AA
Delivery time
Packaging method Bulk
Standard packaging quantity 1
7.99  yuan 7.99yuan
10+:
$ 9.5880
100+:
$ 9.1086
500+:
$ 8.7890
1000+:
$ 8.7730
2000+:
$ 8.7091
5000+:
$ 8.6292
7500+:
$ 8.5653
10000+:
$ 8.5333
Quantity
10+
100+
500+
1000+
2000+
Price
$9.5880
$9.1086
$8.7890
$8.7730
$8.7091
Price $ 9.5880 $ 9.1086 $ 8.7890 $ 8.7730 $ 8.7091
Start batch production 10+ 100+ 500+ 1000+ 2000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(1308) Minimum order quantity(10)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/forward voltage:

1.3 V



Technical parameters/thermal resistance:

1.5K/W (RθJC)



Technical parameters/forward current:

25 A



Technical parameters/Maximum forward surge current (Ifsm):

373 A



Technical parameters/forward voltage (Max):

900 mV



Technical parameters/forward current (Max):

25 A



Technical parameters/operating temperature (Max):

175 ℃



Technical parameters/operating temperature (Min):

-65 ℃



Technical parameters/working junction temperature (Max):

175 ℃



Package parameters/number of pins:

2



Encapsulation parameters/Encapsulation:

DO-203AA



Dimensions/Length:

12.69 mm



Dimensions/Width:

11 mm



Dimensions/Height:

31.8 mm



Dimensions/Packaging:

DO-203AA



Physical parameters/operating temperature:

-65℃ ~ 175℃



Other/Product Lifecycle:

Active



Other/Packaging Methods:

Bulk



Other/Manufacturing Applications:

Power Management, Industrial, Motor Drive & Control



Compliant with standards/RoHS standards:

RoHS Compliant



Compliant with standards/lead standards:

Lead Free



The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual

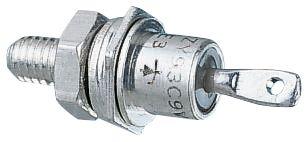

VS-25F100 VS-25F100 VISHAY 功能相似 DO-203AA
