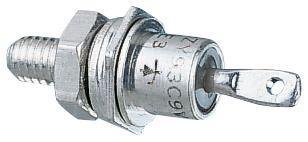

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model VS-25F100
Description VS-25F100 Diode, switch 25A 1000V silicon junction type, 2-pin DO-4 package
Product QR code
Brand: VISHAY
Packaging DO-203AA
Delivery time
Packaging method Bulk
Standard packaging quantity 1
32.31  yuan 32.31yuan
1+:
$ 39.4182
10+:
$ 37.1565
100+:
$ 35.4764
250+:
$ 35.2179
500+:
$ 34.9594
1000+:
$ 34.6686
2500+:
$ 34.4102
5000+:
$ 34.2486
Quantity
1+
10+
100+
250+
500+
Price
$39.4182
$37.1565
$35.4764
$35.2179
$34.9594
Price $ 39.4182 $ 37.1565 $ 35.4764 $ 35.2179 $ 34.9594
Start batch production 1+ 10+ 100+ 250+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(3073) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/forward voltage: 1.3 V

Technical parameters/Maximum reverse voltage (Vrrm): 1 kV

Technical parameters/forward current: 25 A

Technical parameters/Maximum forward surge current (Ifsm): 373 A

Technical parameters/forward voltage (Max): 1.3V @78A

Technical parameters/forward current (Max): 25 A

Technical parameters/operating temperature (Max): 175 ℃

Technical parameters/operating temperature (Min): -65 ℃

Package parameters/number of pins: 2

Encapsulation parameters/Encapsulation: DO-203AA

External dimensions/length: 12.69 mm

External dimensions/width: 11 mm

External dimensions/height: 31.8 mm

External dimensions/packaging: DO-203AA

Other/Packaging Methods: Bulk

Other/Manufacturing Applications: Industrial, Motor Drive and Control, Power Management

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free
