ADM809TARTZ-REEL: The Ultimate Microprocessor Supervisory Circuit for Precision Voltage Monitoring
Introduction
In the world of embedded systems and microprocessor-based designs, voltage supervision is not a luxury—it is a necessity. A sudden drop in supply voltage can cause unpredictable behavior, data corruption, or even permanent damage to sensitive components. This is where the ADM809TARTZ-REEL steps in as a silent guardian. Manufactured by Analog Devices, this compact supervisory circuit is engineered to monitor power supply voltages and assert a reset signal whenever the voltage falls below a precise threshold. Whether you are designing industrial controllers, automotive electronics, or battery-powered IoT devices, the ADM809TARTZ-REEL offers a cost-effective, highly reliable, and space-saving solution that ensures your microprocessor starts and operates correctly every single time.
This article dives deep into the technical architecture, application scenarios, and selection criteria for the ADM809TARTZ-REEL. We will also highlight how ICGOODFIND, a trusted online platform for electronic components, can help you source this part with confidence, offering real-time inventory, competitive pricing, and global shipping. By the end, you will understand why this tiny SOT-23 package is a must-have component for any serious hardware engineer.
Part 1: Technical Overview – What Makes the ADM809TARTZ-REEL Special?
1.1 Core Function and Reset Threshold
The ADM809TARTZ-REEL is a single-voltage microprocessor supervisory circuit that monitors the supply voltage (VCC) of a system. Its primary job is to generate a active-low reset signal (RESET) when VCC drops below a factory-trimmed threshold voltage. For the “T” suffix in the part number, the threshold is 3.08V (typical) , which is ideal for 3.3V supply rails. When VCC recovers and exceeds the threshold, the reset signal is released after a minimum reset timeout period of 140ms (typical), giving the power supply and oscillator time to stabilize.
This behavior is critical for preventing brown-out conditions—situations where the supply voltage dips but does not fully disconnect. Without a supervisory circuit, a microcontroller might attempt to execute instructions at voltages too low for reliable logic operation, leading to system hangs or corrupted EEPROM data.
1.2 Pinout and Package Efficiency
The ADM809TARTZ-REEL comes in a 3-pin SOT-23 package, which is one of the smallest footprints available for this class of device. The pinout is straightforward: - Pin 1 (GND): Ground connection. - Pin 2 (RESET): Active-low reset output (open-drain or push-pull, depending on variant). - Pin 3 (VCC): Monitored power supply input.

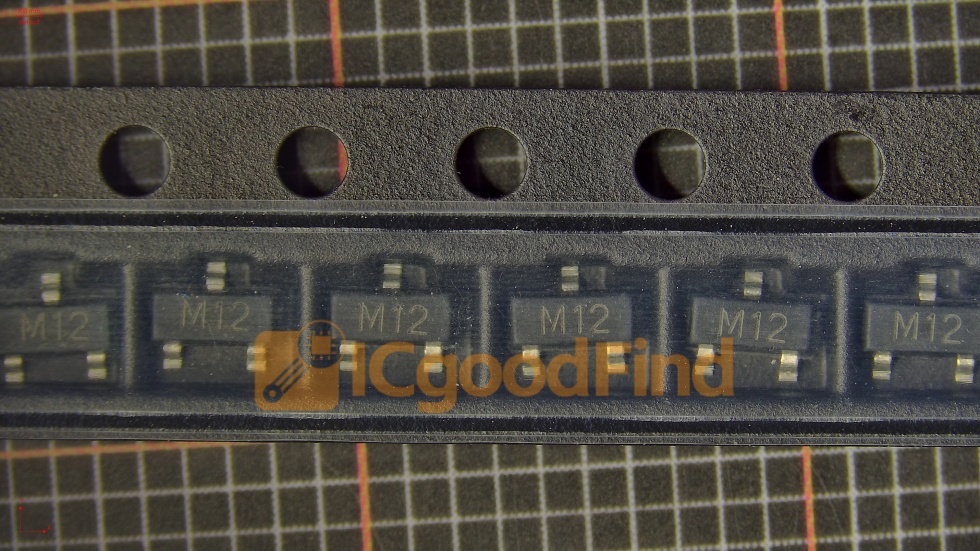

This minimal pin count means you can integrate voltage supervision into even the most PCB-area-constrained designs—from wearables to compact sensor nodes. The “REEL” suffix indicates that the component is supplied in tape-and-reel packaging, ideal for automated pick-and-place assembly lines, reducing manufacturing time and cost.
1.3 Low Power Consumption and Wide Temperature Range
One of the standout features of the ADM809TARTZ-REEL is its ultra-low quiescent current, typically around 1.5µA (max 3µA). This makes it perfect for battery-powered applications where every microamp counts. Additionally, the device operates over a wide temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments such as automotive engine compartments or industrial ovens.
The reset output is guaranteed valid down to VCC = 1.0V, which means even during severe power sag, the reset signal remains in a defined logic state. This is a crucial feature for preventing floating logic inputs during power-up and power-down sequences.
Part 2: Application Scenarios and Design Integration
2.1 Embedded Microcontroller Systems (Arduino, STM32, PIC)
For hobbyists and professionals alike, the ADM809TARTZ-REEL is a drop-in upgrade for basic RC reset circuits. Many development boards use a simple capacitor-resistor network to generate a power-on reset pulse, but these are unreliable under voltage transients. By replacing the RC network with the ADM809TARTZ-REEL, you gain: - Precise threshold detection (no guessing). - Automatic reset on brown-out (not just power-on). - Manual reset capability (if you use the open-drain version with an external pull-up).
For example, in an STM32-based data logger, the ADM809TARTZ-REEL can be connected directly to the NRST pin. If the battery voltage sags during a high-current GSM transmission, the supervisor will hold the MCU in reset until the supply is stable again, preventing false writes to SD cards.
2.2 Automotive and Industrial Control Systems
In automotive environments, the supply voltage can fluctuate wildly due to cranking, alternator load, and electromagnetic interference. The ADM809TARTZ-REEL’s -40°C to +125°C rating and immunity to fast voltage transients make it an excellent choice for: - Engine control units (ECUs) – ensuring safe shutdown during low battery conditions. - CAN bus transceivers – preventing corrupted messages during voltage dips. - Industrial PLCs – providing a clean reset signal for safety-rated logic.
The 3.08V threshold is particularly suited for 3.3V logic rails common in modern automotive MCUs. In contrast, a 5V system would require the ADM809SARTZ-REEL (threshold 2.93V) or ADM809LARTZ-REEL (threshold 4.63V). Always check the threshold against your actual VCC tolerance.
2.3 Battery-Powered IoT and Portable Devices
For IoT sensors that run on coin cells or Li-ion batteries, the ADM809TARTZ-REEL serves a dual purpose: 1. Power-on reset – ensures the MCU boots cleanly when the battery is first connected. 2. Low-battery detection – since the threshold is 3.08V, you can use the reset output as an interrupt to trigger a graceful shutdown or data save before the battery drops below the MCU’s minimum operating voltage.
Because the quiescent current is so low, the supervisor does not meaningfully shorten battery life. In a typical LoRaWAN node that sleeps for 99% of the time, adding the ADM809TARTZ-REEL adds only ~1.5µA of continuous drain, which is negligible compared to the MCU’s sleep current.
Design tip: When using the ADM809TARTZ-REEL with an open-drain RESET output, always connect a 10kΩ pull-up resistor to VCC. This ensures a clean high level when reset is not asserted. For push-pull versions (like the ADM809TARTZ-REEL, which is push-pull), no external pull-up is needed.
Part 3: Sourcing, Quality, and the ICGOODFIND Advantage
3.1 Why Choose the ADM809TARTZ-REEL Over Alternatives?
There are many voltage supervisors on the market, but the ADM809TARTZ-REEL stands out due to: - Analog Devices’ reputation for high-precision analog ICs. - Tight threshold accuracy (±1.5% over temperature). - No external components required (unlike some comparators that need resistors and references). - Industry-standard pinout – it is a direct replacement for Maxim’s MAX809T and TI’s TLV809T, making it easy to swap in existing designs.
However, availability and counterfeit risk are real concerns. This is where ICGOODFIND becomes your best ally.
3.2 ICGOODFIND: Your Trusted Component Sourcing Platform
ICGOODFIND is an online electronic components marketplace that aggregates inventory from authorized distributors and vetted suppliers worldwide. When you search for “ADM809TARTZ-REEL” on ICGOODFIND, you get: - Real-time stock levels from multiple sources, not just one warehouse. - Price comparison to help you negotiate bulk discounts. - Datasheets, PCB footprints, and 3D models for direct integration into your CAD tools. - Counterfeit protection – every part is sourced from traceable channels, and ICGOODFIND offers a quality guarantee on all orders.
For engineering teams, ICGOODFIND also provides BOM (Bill of Materials) management tools. You can upload your full parts list, and the platform will automatically find the best pricing and availability for every component, including the ADM809TARTZ-REEL. This saves hours of manual searching across multiple distributor websites.
3.3 Procurement Best Practices for the ADM809TARTZ-REEL
When ordering this part, pay attention to the full part number: - ADM809TARTZ-REEL – This is the 3.08V threshold, push-pull reset output, SOT-23 package, tape-and-reel. - Do not confuse it with ADM809SARTZ-REEL (2.93V) or ADM809LARTZ-REEL (4.63V).
Check the date code and lot number on the reel to ensure freshness. Analog Devices components have a long shelf life, but proper storage (in anti-moisture bags) is essential for SOT-23 packages to prevent solderability issues. ICGOODFIND’s suppliers adhere to JEDEC moisture sensitivity level (MSL) 1 standards, meaning the parts are safe for unlimited floor life if stored below 30°C/85% RH.
Finally, always order a few extra units for prototyping and testing. The ADM809TARTZ-REEL is inexpensive (typically under $0.50 in low quantities), so the cost of over-ordering is minimal compared to the cost of a board re-spin due to a faulty reset circuit.
Conclusion
The ADM809TARTZ-REEL is more than just a simple voltage detector—it is a critical safety component that ensures your microprocessor-based system boots reliably, runs without corruption, and shuts down gracefully under power stress. Its tiny SOT-23 footprint, ultra-low power consumption, and precise 3.08V threshold make it the default choice for 3.3V logic systems across consumer, industrial, and automotive applications.
Whether you are a hobbyist building a custom Arduino clone or an engineer designing a high-volume automotive ECU, integrating the ADM809TARTZ-REEL into your design is a best practice that will save you countless hours of debugging. And when it comes to sourcing this component, ICGOODFIND offers the transparency, quality assurance, and supply chain flexibility that modern hardware development demands. With ICGOODFIND, you can compare prices, verify authenticity, and get your parts delivered quickly—so you can focus on what really matters: building great products.
Remember: A reliable reset circuit is the first line of defense against system instability. Choose the ADM809TARTZ-REEL, source it through ICGOODFIND, and design with confidence.
