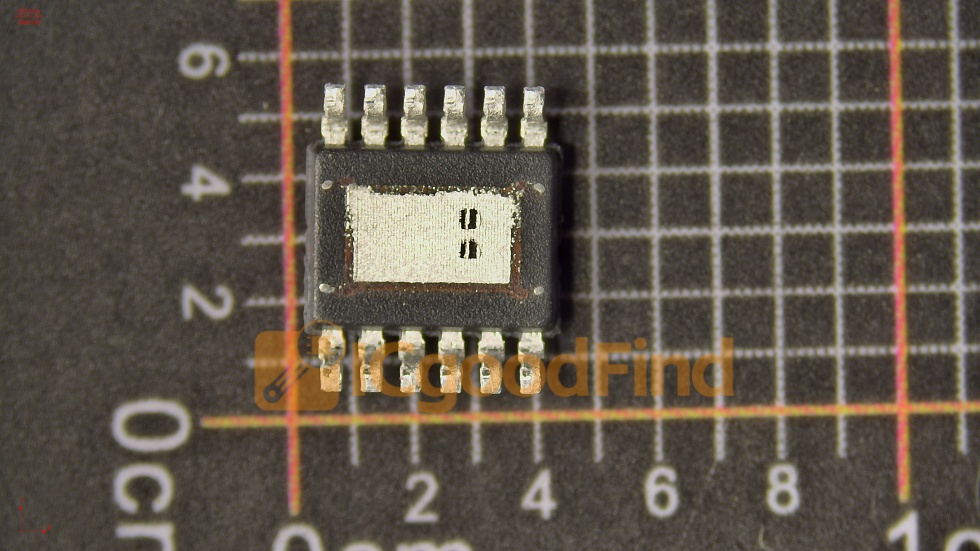

BTS50085-1TMA: The High-Side Power Switch Redefining Automotive Smart Distribution

Introduction

In the rapidly evolving landscape of automotive electronics, the demand for reliable, intelligent, and compact power management solutions has never been greater. Modern vehicles are no longer just mechanical machines; they are sophisticated networks of sensors, actuators, and control units, all requiring precise and protected power delivery. At the heart of this transformation lies a critical component: the smart high-side power switch. Among the latest innovations in this domain, the BTS50085-1TMA from Infineon stands out as a benchmark for performance, robustness, and integration. This article delves into the architecture, capabilities, and real-world applications of this remarkable device, explaining why it has become a preferred choice for engineers designing next-generation automotive systems. Whether you are a design engineer, a procurement specialist, or a tech enthusiast, understanding the BTS50085-1TMA is essential for grasping the future of automotive power distribution. For sourcing this component and exploring its full specifications, platforms like ICGOODFIND offer comprehensive inventory and technical data, making procurement seamless and reliable.

Body

Part 1: Unpacking the Core – What Makes the BTS50085-1TMA Exceptional?

The BTS50085-1TMA is a single-channel high-side power switch built on Infineon’s advanced Smart Power Technology (SPT) . It is specifically designed to replace traditional electromechanical relays and fuses in automotive applications, offering a solid-state solution that is faster, more durable, and more intelligent. Let’s break down its primary technical attributes.

1. Wide Operating Voltage and Current Handling
The device operates over a wide input voltage range from 4V to 28V, making it suitable for both 12V and 24V board nets. It can deliver a continuous load current of up to 8.5A (hence the “85” in its name), with a very low ON-state resistance (RDS(on)) of typically 50 mΩ. This low resistance is crucial for minimizing power losses and heat generation, especially in high-current applications like heated seats, window defrosters, or auxiliary power outlets.

2. Advanced Protection Features
One of the standout features of the BTS50085-1TMA is its comprehensive built-in protection suite. It includes: - Load current limitation to prevent damage during short circuits. - Thermal shutdown with hysteresis to protect the chip from overheating. - Overvoltage protection (including load dump) for harsh automotive transients. - Reverse battery protection (external) to ensure survival in miswiring scenarios. - Loss of ground protection and ESD protection up to 4kV (HBM).

These features are not just add-ons; they are integrated into the silicon, allowing for a compact footprint (PG-TDSO-14 package) while eliminating the need for external discrete components.

3. Diagnostic and Control Interface
Unlike a simple relay, the BTS50085-1TMA provides digital status feedback via a current-sense output (IS) . This allows a microcontroller to monitor the load current in real-time, detect open loads, and diagnose short circuits. The input is TTL/CMOS compatible, enabling direct connection to GPIO pins of standard microcontrollers. Furthermore, it features a very low quiescent current in standby mode, which is critical for battery conservation in modern vehicles.

Why does this matter?
The integration of these features means that designers can reduce PCB area by up to 70% compared to discrete relay-and-fuse solutions. Moreover, the switching speed is orders of magnitude faster than mechanical relays, enabling advanced functions like pulse-width modulation (PWM) for dimming or heating control without contact wear.

Part 2: Application Scenarios – Where Does the BTS50085-1TMA Shine?

The versatility of the BTS50085-1TMA makes it a universal building block for automotive body control modules (BCMs) and smart junction boxes. Below are three primary application domains where this component excels.

A. Automotive Lighting Systems
Modern vehicles use LED lighting for headlights, daytime running lights, and interior ambient lighting. LEDs require constant current regulation and protection against voltage spikes. The BTS50085-1TMA, with its PWM capability up to 1kHz, can efficiently dim LEDs without the flicker associated with linear regulators. Its open-load detection is particularly useful for identifying a burnt-out LED or a disconnected wire, triggering a warning on the dashboard. In a typical setup, the switch’s current-sense output feeds into an ADC of a BCM, enabling adaptive lighting control based on ambient conditions.

B. Resistive and Inductive Loads (Heaters, Solenoids, Motors)
Heated seats, rear window defrosters, and fuel heaters are resistive loads that draw high inrush currents. The BTS50085-1TMA’s intelligent current limiting prevents the power supply from sagging during startup. For inductive loads like small DC motors (e.g., mirror adjustment, sunroof), the integrated freewheeling protection clamps the back-EMF voltage, preventing damage to the switch. The device’s thermal management is robust enough to handle repeated inrush cycles, a common failure point for relays.

C. 24V Commercial and Off-Highway Vehicles
Trucks, buses, and agricultural machinery often operate on 24V systems. The BTS50085-1TMA’s wide voltage range makes it a drop-in solution for these platforms. Its high immunity to load dump transients (up to 40V) ensures reliability in harsh electrical environments. Moreover, the diagnostic feedback allows fleet management systems to remotely monitor the health of auxiliary loads, reducing downtime and maintenance costs.

Real-World Integration Example:
Consider a modern smart junction box that replaces a traditional fuse box. Each output channel uses a BTS50085-1TMA. The microcontroller communicates via SPI to control each switch, reads the current-sense pins, and logs any fault events. This architecture not only saves weight (copper wiring) but also enables predictive maintenance. For engineers looking to prototype such a system, ICGOODFIND provides not only the BTS50085-1TMA but also evaluation boards and reference designs, accelerating the development cycle.

Part 3: Design Considerations and Comparative Advantages

When selecting a high-side switch, engineers often compare the BTS50085-1TMA against alternatives like the BTS7002 or discrete MOSFET designs. Here’s why the BTS50085-1TMA often wins.

1. Efficiency vs. Cost Trade-off
With an RDS(on) of 50mΩ, the BTS50085-1TMA sits in a sweet spot between ultra-low-resistance (and expensive) switches and higher-resistance (but cheaper) ones. For an 8.5A load, the power dissipation is only about 3.6W (I²R), which is manageable with standard PCB copper areas. This balance makes it cost-effective for high-volume production without sacrificing performance.

2. Scalability and Design Reuse
The device is part of Infineon’s PROFET™+ 12V family, which includes variants with different current ratings (e.g., BTS7008, BTS50010). This allows designers to use the same PCB layout for multiple vehicle platforms by simply changing the component. The pinout is standardized, and the control logic is identical, reducing software development effort.

3. Thermal Performance and Reliability
The PG-TDSO-14 package features an exposed pad that enhances heat transfer to the PCB. In a typical 4-layer board with thermal vias, the junction-to-ambient thermal resistance (RthJA) can be kept below 40 K/W, allowing the switch to operate at full load up to 85°C ambient. This is a significant advantage over older DPAK packages that require bulky heatsinks.

4. Compliance and Quality
The BTS50085-1TMA is AEC-Q100 qualified (Grade 0, operating from -40°C to +150°C), ensuring it meets the stringent reliability standards of the automotive industry. It is also PPAP capable and supports zero-defect production requirements. For procurement teams, this means fewer field failures and lower warranty costs.

A Note on Sourcing:
Given the global semiconductor supply chain challenges, finding authentic and reliable components is paramount. ICGOODFIND is a trusted electronic components distributor that offers real-time inventory, competitive pricing, and full traceability for the BTS50085-1TMA. Their platform allows you to filter by date code, batch number, and even request factory inspection reports, ensuring that your production line never stops due to counterfeit parts.

Conclusion

The BTS50085-1TMA is more than just a power switch; it is a complete smart power management solution that encapsulates the shift from mechanical to electronic control in vehicles. Its combination of high current capability, robust protection, and diagnostic intelligence makes it indispensable for modern automotive architectures, from compact EVs to heavy-duty trucks. By replacing relays and fuses, it reduces weight, improves reliability, and enables new features like remote diagnostics and predictive maintenance.

For design engineers, the BTS50085-1TMA simplifies the complex task of load driving, allowing them to focus on higher-level system integration. For procurement professionals, its AEC-Q100 qualification and wide availability through distributors like ICGOODFIND ensure a secure and cost-effective supply chain. As the automotive industry accelerates toward electrification and autonomous driving, the role of such intelligent power devices will only grow. Adopting the BTS50085-1TMA today is not just a design choice; it is a strategic investment in the future of mobility.
