Pictures and Names of Electronic Components: A Visual Guide for Beginners and Hobbyists

Introduction

In the rapidly evolving world of technology, understanding the fundamental building blocks of electronic devices is more valuable than ever. Whether you’re an aspiring engineer, a DIY enthusiast, or a curious learner, being able to identify electronic components by sight and name is an essential first step. This comprehensive guide provides a detailed visual directory of the most common electronic components, complete with clear pictures and their corresponding names. We will explore their basic functions, typical applications, and why this knowledge is crucial for anyone interacting with technology on a deeper level. From the simplest resistor to complex integrated circuits, this resource aims to demystify the components that power our modern world. By the end of this article, you will have a solid foundational understanding of the hardware that forms the backbone of every electronic gadget you use.

The Core Passive Components: The Foundation of Every Circuit

Let’s begin with passive components, which are essential elements that do not require a power source to operate but influence the flow of electricity in a circuit. They are the unsung heroes that provide stability, control energy, and store power.

Resistors are arguably the most common electronic component. They are designed to limit the flow of electric current in a circuit. Visually, they are typically small, cylindrical parts with two leads (wires) and are covered in colored bands. These bands are a color code that indicates their resistance value (measured in ohms, Ω) and tolerance. They are crucial for protecting sensitive components, like LEDs, from receiving too much current. Without resistors, many components would instantly overheat and fail.

Capacitors are the batteries’ cousins; they store and release electrical energy. However, they charge and discharge much faster than batteries. They come in a vast array of sizes and shapes. The most common types are ceramic capacitors (small, orange-brown discs or yellow blobs) and electrolytic capacitors (small metal cans that often look like tiny cylinders with a positive and negative lead marked on them). Their primary functions include filtering noise from power supplies, stabilizing voltage, and timing circuits in conjunction with resistors. For instance, the flash of a camera relies on a capacitor charging up and then releasing all its stored energy in a very short burst.

Inductors are components that store energy in a magnetic field when electrical current flows through them. They typically consist of a coil of insulated wire wound around a core, which can be just air or a magnetic material like iron or ferrite. They strongly resist changes in current, making them ideal for use in filters (to block certain AC signals) and in power supplies to smooth out current. You will often find them in tuned circuits for radios and transformers, which are essentially two inductors placed close together to transfer energy.

Active Components: The Brains and Muscle of Electronics

Active components are those that can amplify or control electrical signals, typically requiring a power source to function. They are the dynamic elements that give circuits their intelligence and functionality.

Diodes are the one-way streets of electronics. They allow current to flow freely in one direction but block it almost completely in the opposite direction. The most common type is the Light-Emitting Diode (LED), which emits light when current passes through it. Standard signal diodes are small glass or plastic cylinders with a stripe indicating the cathode (negative side). Their most critical application is in converting alternating current (AC) to direct current (DC), a process called rectification, which is fundamental in all power adapters.

Transistors are arguably the most important invention of the 20th century, serving as the fundamental building block of modern computing. They act as either electronically controlled switches or amplifiers. The most common type is the Bipolar Junction Transistor (BJT), which has three leads: the emitter, base, and collector. A small current applied to the base can control a much larger current flowing between the collector and emitter. Field-Effect Transistors (FETs) operate on a similar principle but are voltage-controlled. You will find billions of transistors in a single microprocessor, making them the workhorses of logic and memory circuits.

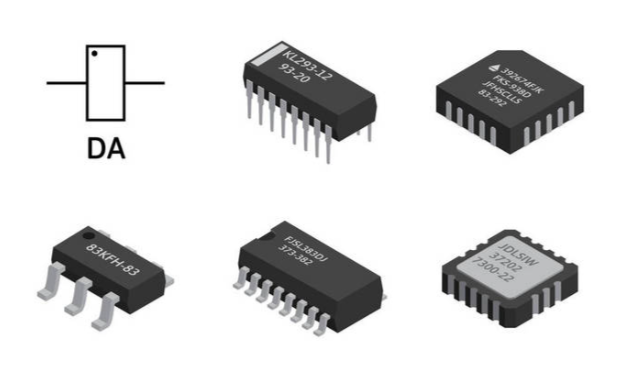

Integrated Circuits (ICs) are the ultimate expression of miniaturization and complexity. An IC, or microchip, is a complete electronic circuit—containing transistors, resistors, diodes, and capacitors—etched onto a tiny piece of semiconductor material (usually silicon). They are packaged in black plastic or ceramic cases with multiple metal pins for connection. ICs can be simple, like a timer (the famous 555 timer IC), or incredibly complex, like a central processing unit (CPU) in a computer. They perform a vast range of functions, from amplification and logic operations to data processing and storage.

Electromechanical and Other Key Components

This category includes components that bridge the gap between electrical signals and physical movement or interaction.

Switches and relays are control devices. A switch is a simple mechanical component that manually opens or closes a circuit, allowing you to turn a device on or off. A relay is an electrically operated switch. It uses a small current in one circuit to control a much larger current in another circuit, providing isolation and safety. Relays are essential for controlling high-power devices like motors with low-power circuits like microcontrollers.

Potentiometers are variable resistors. They have three terminals and a knob or slider that allows users to manually adjust the resistance value. This is how you control volume on a stereo, dim lights, or tune an old radio. They provide a user interface for interacting with electronic devices.

Sensors are components that detect changes in the environment and convert them into electrical signals. Common examples include: * Photoresistors (LDRs): Change resistance based on light intensity. * Thermistors: Change resistance based on temperature. * Microphones: Convert sound waves into electrical signals.

For hobbyists and professionals looking to source these components for projects, finding a reliable supplier is key. This is where platforms like ICGOODFIND become invaluable. They help streamline the process of locating genuine parts from trusted distributors, saving significant time and reducing the risk of purchasing counterfeit components that could derail your project.

Conclusion

Navigating the world of electronics begins with mastering the basics: recognizing components by their pictures and names. From the current-limiting resistor to the logic-processing integrated circuit, each part plays a specific and vital role in bringing electronic concepts to life. This visual guide provides a foundation upon which you can build deeper knowledge about how these components work together within circuits. The ability to identify these parts not only empowers you to repair and modify existing devices but also unlocks the creative potential to design and build your own projects from scratch. Keep this guide handy as a reference, continue experimenting, and remember that reliable sourcing platforms like ICGOODFIND are there to support your journey into the fascinating world of electronics.
