Model SMF15CT1G

Description 5-line transient voltage suppressor, used to provide ESD protection # # # transient voltage suppressor, On Semiconductor

Brand: ON Semiconductor

Packaging SC-70-6

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

20+:

$ 0.2160

50+:

$ 0.2000

100+:

$ 0.1920

300+:

$ 0.1856

500+:

$ 0.1808

1000+:

$ 0.1776

5000+:

$ 0.1744

10000+:

$ 0.1712

Price	$ 0.2160	$ 0.2000	$ 0.1920	$ 0.1856	$ 0.1808
Start batch production	20+	50+	100+	300+	500+

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

Technical parameters/rated voltage (DC):	15.0 V
Technical parameters/operating voltage:	15 V
Technical parameters/rated power:	100 W
Technical parameters/breakdown voltage:	17 V\|17 V
Technical parameters/number of circuits:	5
Technical parameters/number of pins:	6
Technical parameters/dissipated power:	100 W
Technical parameters/clamp voltage:	29 V
Technical parameters/test current:	1 mA
Technical parameters/peak pulse power:	100 W
Technical parameters/minimum reverse breakdown voltage:	17 V
Technical parameters/operating temperature (Max):	125 ℃
Technical parameters/operating temperature (Min):	-40 ℃
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	6
Encapsulation parameters/Encapsulation:	SC-70-6
Dimensions/Length:	2.2 mm
Dimensions/Width:	1.35 mm
Dimensions/Height:	0.9 mm
Dimensions/Packaging:	SC-70-6
Physical parameters/operating temperature:	-40℃ ~ 125℃ (TJ)
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tape & Reel (TR)
Other/Manufacturing Applications:	Automotive grade, General Motors
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Customs information/ECCN code:	EAR99

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
SMF15C	HY Electronic	功能相似		Trans Voltage Suppressor Diode, 200W, 15V V(RWM), Bidirectional, 1 Element, Silicon,	PDF
SMF15C	Micro Commercial Components	功能相似		Trans Voltage Suppressor Diode, 200W, 15V V(RWM), Bidirectional, 1 Element, Silicon,	PDF
SMF15CA	Meritek	功能相似	-	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS
SMF15CA	FMS	功能相似	SOD-123	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS

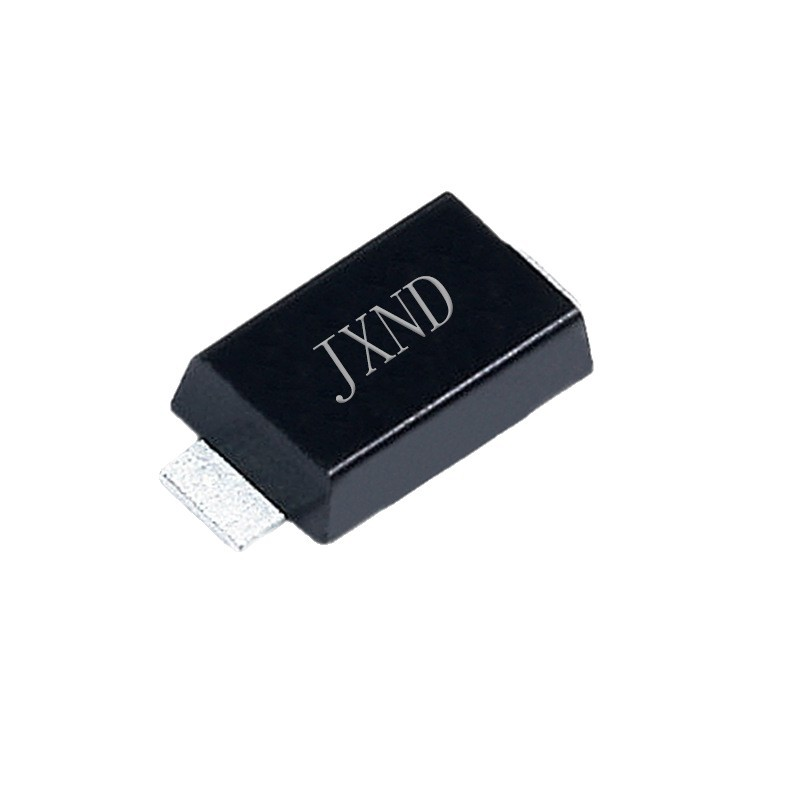

SMF15CA	JXND	功能相似	SOD-123FL	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS	PDF
SMF15CA	KUU	功能相似	SOD-123FL	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS
SMF15CA	Sunmate	功能相似	SOD-123FL	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS
SMF15CA	Micro Commercial Components	功能相似		200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS	PDF
SMF15CA	Diotec Semiconductor	功能相似	SOD-123FL	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS	PDF
SMF15CA	MDD	功能相似	SOD-123FL	200W TRANSIENT VOLTAGE SUPPRESSOR 5.0 TO 170 VOLTS	PDF
