Technical parameters/rated current: 12 A
Technical parameters/tolerances: ±20 %
Technical parameters/inductance: 6.8 µH
Technical parameters/self harmonic frequency: 12 MHz
Technical parameters/resonance frequency: 12 MHz
Technical parameters/inductance tolerance: ±20 %
Technical parameters/testing frequency: 100 MHz
Technical parameters/Resistance (DC): 0.014 Ω
Technical parameters/operating temperature (Max): 125 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/accuracy: ±20 %
Technical parameters/resistance (DC Max): 0.014 Ω
Encapsulation parameters/installation method: Surface Mount
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: 13.7mm x 13.7mm x 7mm
External dimensions/length: 13.7 mm
External dimensions/width: 13.7 mm
External dimensions/height: 7 mm
External dimensions/packaging: 13.7mm x 13.7mm x 7mm
Physical parameters/operating temperature: -55℃ ~ 125℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tape & Reel (TR)
Other/Manufacturing Applications: Industrial, power management
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2016/06/20
Customs information/ECCN code: EAR99
Customs information/HTS code: 8504508000
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

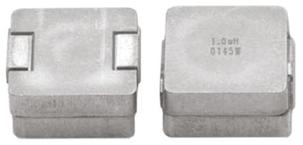

IHLP5050FDER6R8M01
|
VISHAY | 功能相似 | Non Standard |
IHLP5050FD-01 Series Magnetically Shielded Wire Wound Chokes Vishay IHLP-5050FD-01 series high current low profile shielded inductors. The IHLP-5050FD-01 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction. Frequency range up to 5.0 MHz Lowest DC Resistance / μH in this package size Applications include: PDA/notebook/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA) ### Vishay 非标准表面安装电感器（扼流圈）
|
