Model SMCJ54CA-13-F
Description SMCJ Series 54 V 1500 W Surface Mount Bidirectional TVS Diode - DO-214AB
Product QR code
Brand: Diodes
Packaging SMC
Delivery time
Packaging method Tape & Reel (TR)
Standard packaging quantity 1
2.28  yuan 2.28yuan
5+:
$ 3.0807
25+:
$ 2.8525
50+:
$ 2.6928
100+:
$ 2.6243
500+:
$ 2.5787
2500+:
$ 2.5216
5000+:
$ 2.4988
10000+:
$ 2.4646
Quantity
5+
25+
50+
100+
500+
Price
$3.0807
$2.8525
$2.6928
$2.6243
$2.5787
Price $ 3.0807 $ 2.8525 $ 2.6928 $ 2.6243 $ 2.5787
Start batch production 5+ 25+ 50+ 100+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(5278) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/rated voltage (DC): 54.0 V

Technical parameters/working voltage: 54 V

Technical parameters/capacitors: 5000 pF

Technical parameters/rated power: 1.50 kW

Technical parameters/breakdown voltage: 60 V|60 V

Technical parameters/number of circuits: 1

Technical parameters/forward voltage: 3.5 V

Technical parameters/dissipated power: 1500 W

Technical parameters/clamp voltage: 87.1 V

Technical parameters/test current: 1 mA

Technical parameters/peak pulse power: 1500 W

Technical parameters/minimum reverse breakdown voltage: 60 V

Technical parameters/operating temperature (Max): 150 ℃

Technical parameters/operating temperature (Min): 55 ℃

Technical parameters/operating temperature: -55℃ ~ 150℃

Encapsulation parameters/installation method: Surface Mount

Package parameters/number of pins: 2

Encapsulation parameters/Encapsulation: SMC

External dimensions/length: 7.11 mm

External dimensions/width: 6.22 mm

External dimensions/height: 2.62 mm

External dimensions/packaging: SMC

Physical parameters/operating temperature: -55℃ ~ 150℃ (TJ)

Other/Product Lifecycle: Active

Other/Packaging Methods: Tape & Reel (TR)

Other/Manufacturing Applications: -, General

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Customs information/ECCN code: EAR99

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
SMCJ54CA-E3/57T SMCJ54CA-E3/57T VISHAY 功能相似 DO-214AB
TRANSZORB® 瞬态电压抑制器表面安装双向 1500W，SMCJ 系列，Vishay Semiconductor ### 瞬态电压抑制器，Vishay Semiconductor
PDF
SMCJ54CA-E3/57T SMCJ54CA-E3/57T Vishay Siliconix 功能相似
TRANSZORB® 瞬态电压抑制器表面安装双向 1500W，SMCJ 系列，Vishay Semiconductor ### 瞬态电压抑制器，Vishay Semiconductor
PDF
SMCJ54CA-TP SMCJ54CA-TP Micro Commercial Components 功能相似 SMC
双向 54V 1500W
PDF

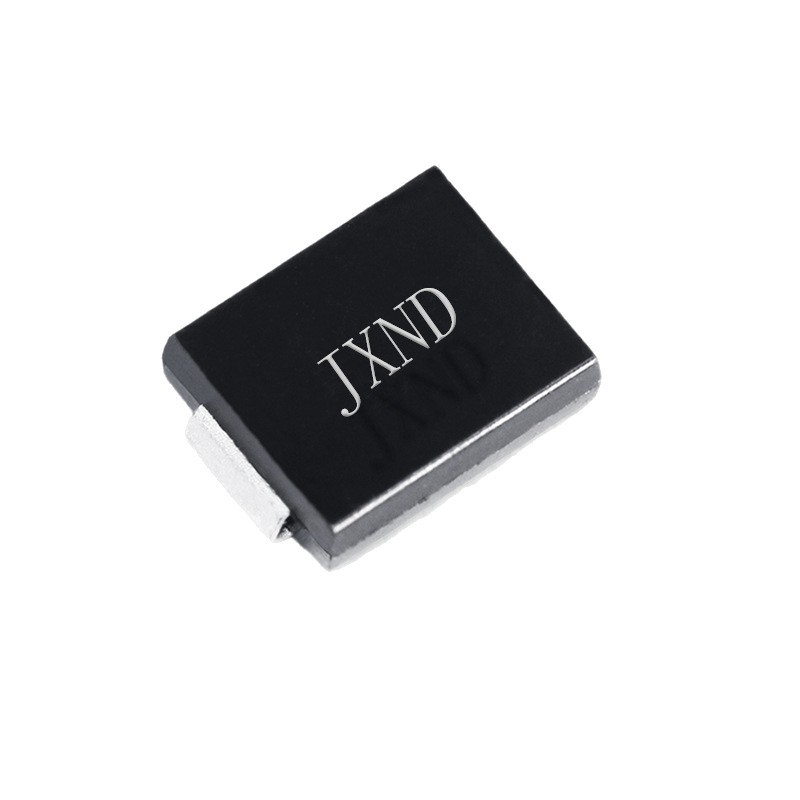

SMDJ54CA SMDJ54CA JXND 功能相似 SMC
瞬态电压抑制二极管 Transient Voltage Suppression Diodes
PDF
SMDJ54CA SMDJ54CA Littelfuse 功能相似 DO-214AB
瞬态电压抑制二极管 Transient Voltage Suppression Diodes
PDF
