Technical parameters/number of contacts: 20
Technical parameters/polarity: Female
Technical parameters/Contact electroplating: Gold
Technical parameters/number of rows: 1
Technical parameters/number of pins: 20
Technical parameters/rated current (Max): 1 A
Technical parameters/operating temperature (Max): 125 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/Contact resistance (Max): 10 mΩ
Encapsulation parameters/installation method: Through Hole
Packaging parameters/pin spacing: 2.54 mm
External dimensions/length: 50.8 mm
External dimensions/width: 2.54 mm
External dimensions/height: 2.41 mm
External dimensions/pin spacing: 2.54 mm
Physical parameters/shell color: Black
Physical parameters/color: Black
Physical parameters/contact material: Beryllium Copper
Physical parameters/operating temperature: -55℃ ~ 125℃
Physical parameters/shell material: Plastic
Other/Product Lifecycle: Active
Other/Packaging Methods: Bulk
Other/Manufacturing Applications: -, Industrial
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/06/15
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

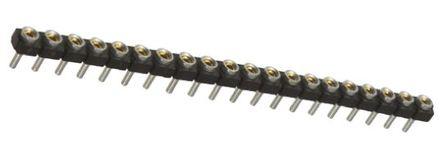

SL-120-T-12
|
Samtec | 功能相似 | Through Hole |
Low Profile 2.54mm Screw Machined Socket Strips - SL Series SL series board to board machined through hole single row socket strips with a 2.54mm pitch and a low profile design. The body of these SL series board-to-board PCB socket strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.76μm gold plating and tin shell. The temperature range at which these board to board machined stacking terminals can be used is -55 to +125°C. Part numbers SL-XXX-X-10 have hollow leg contacts with a 3.10mm pin shoulder height. Part numbers SL-XXX-X-12 are micro sockets which have hollow leg contacts with a 2.41mm pin shoulder height. ### 注 These SL series board-to-board machined socket strips mate with the following: BBL series header terminal strips: see stock number 766-6367 typically. BBS series header terminal strips: see stock number 766-6442 typically. TS series header terminal strips - see stock number 765-6414 typically. ### 2.54 mm 板对板和线对板 - Samtec
|
