Home Page   connector   PCBconnector   insertion pin   M80-5403442
Warm reminder: The pictures are for reference only. The actual product may vary
Collection

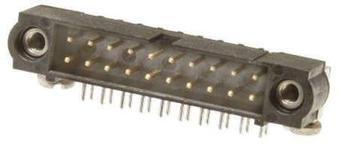

Model M80-5403442
Description M60-604 Series socket socket socket with M60-614 series plug socket # # 0.8mm Harwin M60 series
Product QR code
Brand: Harwin
Packaging
Delivery time
Packaging method Tube
Standard packaging quantity 1
118.46  yuan 118.46yuan
1+:
$ 136.2244
10+:
$ 132.6707
50+:
$ 129.9462
100+:
$ 128.9986
200+:
$ 128.2878
500+:
$ 127.3402
1000+:
$ 126.7479
2000+:
$ 126.1556
Quantity
1+
10+
50+
100+
200+
Price
$136.2244
$132.6707
$129.9462
$128.9986
$128.2878
Price $ 136.2244 $ 132.6707 $ 129.9462 $ 128.9986 $ 128.2878
Start batch production 1+ 10+ 50+ 100+ 200+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(4100) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 34

Technical parameters/polarity: Male

Technical parameters/Contact electroplating: Gold

Technical parameters/rated current: 2.2A/contact

Technical parameters/insulation resistance: 100 MΩ

Technical parameters/number of rows: 2

Technical parameters/Flammability level: UL 94 V-0

Technical parameters/number of pins: 34

Technical parameters/Contact resistance: 25.0 mΩ

Technical parameters/number of plug and unplug cycles: 500

Technical parameters/rated voltage: 800 V

Encapsulation parameters/installation method: Through Hole

Packaging parameters/pin spacing: 2.00 mm

External dimensions/length: 44.0 mm

External dimensions/width: 5.55 mm

External dimensions/height: 5.60 mm

External dimensions/pin spacing: 2.00 mm

Physical parameters/shell color: Black

Physical parameters/color: Black

Physical parameters/contact material: Phosphor Bronze

Physical parameters/operating temperature: -55℃ ~ 125℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Tube

Other/Manufacturing Applications: -

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/12/17
