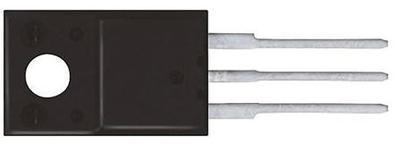

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model FDPF10N60NZ
Description UniFET™ N Channel MOSFET, Fairchild Semiconductor UniFET ™ MOSFET is Fairchild Semiconductor's high-voltage MOSFET series. It has the smallest on state resistance in planar MOSFETs, as well as excellent switching performance and high avalanche energy intensity. In addition, the internal gate source ESD diode enables UniFET-II ™ MOSFET can withstand surge stress exceeding 2000V HBM. UniFET ™ MOSFET is suitable for switch mode power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supply, ATX (advanced technology extension), and electronic lamp ballasts. ###MOSFET transistor, Fairchild Semiconductor offers a wide range of MOSFET device combinations, including high voltage (>250V) and low voltage（
Product QR code
Brand: ON Semiconductor
Packaging TO-220
Delivery time
Packaging method Rail, Tube
Standard packaging quantity 1
6.25  yuan 6.25yuan
10+:
$ 7.4988
100+:
$ 7.1239
500+:
$ 6.8739
1000+:
$ 6.8614
2000+:
$ 6.8114
5000+:
$ 6.7489
7500+:
$ 6.6989
10000+:
$ 6.6739
Quantity
10+
100+
500+
1000+
2000+
Price
$7.4988
$7.1239
$6.8739
$6.8614
$6.8114
Price $ 7.4988 $ 7.1239 $ 6.8739 $ 6.8614 $ 6.8114
Start batch production 10+ 100+ 500+ 1000+ 2000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(6872) Minimum order quantity(10)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of pins: 3

Technical parameters/drain source resistance: 0.64 Ω

Technical parameters/dissipated power: 38 W

Technical parameters/threshold voltage: 5 V

Technical parameters/drain source voltage (Vds): 600 V

Technical parameters/rise time: 50 ns

Technical parameters/Input capacitance (Ciss): 1110pF @25V(Vds)

Technical parameters/rated power (Max): 38 W

Technical parameters/descent time: 50 ns

Technical parameters/operating temperature (Max): 150 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/dissipated power (Max): 38 W

Encapsulation parameters/installation method: Through Hole

Package parameters/number of pins: 3

Encapsulation parameters/Encapsulation: TO-220

External dimensions/length: 10.36 mm

External dimensions/width: 4.9 mm

External dimensions/height: 16.07 mm

External dimensions/packaging: TO-220

Physical parameters/operating temperature: -55℃ ~ 150℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Rail, Tube

Compliant with standards/RoHS standards:

Compliant with standards/lead standards: Lead Free
