Technical parameters/working voltage: 12.5V ~ 25V
Technical parameters/rated current: 100 mA
Technical parameters/number of output interfaces: 1
Technical parameters/Input voltage (DC): 25.0V (max)
Technical parameters/output voltage: 10 V
Technical parameters/output current: 100 mA
Technical parameters/number of channels: 1
Technical parameters/number of pins: 3
Technical parameters/Static current: 4.20 mA
Technical parameters/output capacitor type: Capacitor Free
Technical parameters/voltage drop: 1.7V @40mA
Technical parameters/adjusted output number: 1
Technical parameters/input voltage (Max): 25 V
Technical parameters/input voltage (Min): 12.5 V
Technical parameters/output voltage (Min): 10 V
Technical parameters/output current (Max): 0.1 A
Technical parameters/operating temperature (Max): 125 ℃
Technical parameters/operating temperature (Min): 0 ℃
Technical parameters/accuracy: 5 %
Technical parameters/input voltage: 12.5V ~ 25V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 3

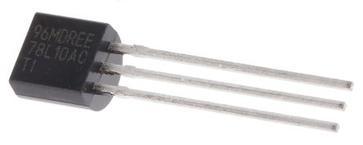

Encapsulation parameters/Encapsulation: TO-226-3
External dimensions/length: 4.83 mm
External dimensions/width: 3.43 mm
External dimensions/height: 3.68 mm
External dimensions/packaging: TO-226-3
Physical parameters/operating temperature: 0℃ ~ 125℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Bulk
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/06/15
