Technical parameters/rated voltage (DC): 16.0 V
Technical parameters/capacitors: 680 µF
Technical parameters/Equivalent series resistance (ESR): 0.24 Ω
Technical parameters/tolerances: ±20 %
Technical parameters/Ripple current: 1210 mA
Technical parameters/operating temperature (Max): 105 ℃
Technical parameters/operating temperature (Min): -40 ℃
Technical parameters/rated voltage: 16 V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: shear band
Packaging parameters/pin spacing: 5 mm
External dimensions/height: 16 mm
External dimensions/diameter: 10.0 mm
External dimensions/packaging: shear band
External dimensions/pin spacing: 5 mm
Physical parameters/medium materials: Aluminum Electrolytic
Physical parameters/operating temperature: -40℃ ~ 105℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Cut Tape (CT)
Other/Lifespan (hours): 1000h @85℃
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standard/REACH SVHC version: 2015/12/17
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
EEUFM1C681
|
Panasonic | 功能相似 | Radial, Can |
FM 系列 6.3 V 至 16 V Panasonic FM 系列 A 型电解电容器提供低阻抗（比 Panasonic FC 系列小 40% 至 70%）和高耐久性。 在 +105°C 时，耐久性为 2000 小时至 7000 小时（取决于盒体尺寸）。 高可靠性 长寿命 高波纹电流 ### 应用 Panasonic FM 系列 A 型电解电容器高度可靠，因此推荐用于工业仪器。 请注意，它们不适用于汽车应用。 工作温度 (°C) | \- 40 至 +105 ---|--- 容差 (%) | 20 直流泄漏电流 | I ≤ 0.01 CV μA
|
||
ELXZ160ELL681MJ16S
|
Chemi-Con | 功能相似 | Radial, Can |

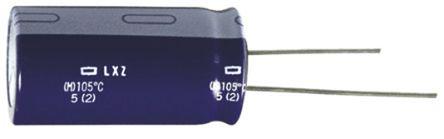

UNITED CHEMI-CON ELXZ160ELL681MJ16S 铝电解电容, 680uF, 16V
|
||
ELXZ160ELL681MJ16S
|
UA | 功能相似 |
UNITED CHEMI-CON ELXZ160ELL681MJ16S 铝电解电容, 680uF, 16V
|
|||
UHE1C681MPD6
|
Nichicon | 类似代替 | Radial, Can |
HE 系列 105°C Nichicon 的 HE 系列电解电容器可提供低阻抗、高稳定性、微型解决方案。 这些紧凑型电解电容器采用 PET（非 PVC）套管制成，带无铅引线。 Temperature range | -40 to 105°C ---|--- Capacitance tolerance | ±20% (120Hz, 20°C) Leakage current (2min) | 0.01CV or 3μA, whichever is greater Life expectancy @ 105°C | > 4000 hours @ rated voltage and ripple current
|
