Technical parameters/rated voltage (DC): 200 V
Technical parameters/capacitors: 22 µF
Technical parameters/tolerances: ±20 %
Technical parameters/Ripple current: 140mA @120Hz
Technical parameters/operating temperature (Max): 105 ℃
Technical parameters/operating temperature (Min): -40 ℃
Technical parameters/rated voltage: 200 V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: -
External dimensions/height: 20 mm
External dimensions/diameter: 10.0 mm
External dimensions/packaging: -
Physical parameters/medium materials: Aluminum Electrolytic
Physical parameters/operating temperature: -40℃ ~ 105℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tape & Reel (TR)
Other/Lifespan (hours): 5000h @105℃
Other/Manufacturing Applications: General
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standard/REACH SVHC version: 2015/12/17
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
EKXG201ELL220MJ20S
|
Chemi-Con | 功能相似 | Radial, Can |
Cap Aluminum Lytic 22uF 200V 20% (10 X 20mm) Radial 5mm 200mA 8000H 105℃ Bulk
|
||

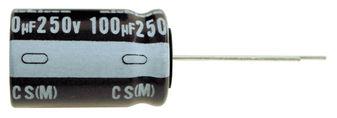

UCS2D220MPD
|
Nichicon | 类似代替 | Radial, Can |
Nichicon CS 系列高可靠性 Nichicon CS 系列铝电解电容器是高可靠性、微型尺寸产品，具有 10,000 负载寿命。 CS 系列具有宽温度范围、200 到 450V 的额定电压范围及高波纹电流。 高可靠性 高波纹电流 长寿命，长达 10,000 小时 无铅回流焊接 ### 径向 105°C
|
||
UVZ2D220MPD1TD
|
Nichicon | 类似代替 | Radial, Can |
Cap Aluminum Lytic 22uF 200V 20% (10 X 20mm) Radial 5mm 120mA 1000H 105℃ Ammo
|
