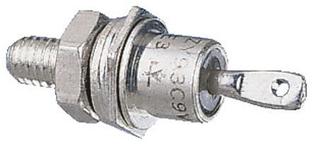

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model VS-70HFR140
Description Standard recovery rectifier, with industrial standard packaging types for multi-purpose, high-efficiency standard recovery power diodes exceeding 40A. ###Diodes and rectifiers, Vishay Semiconductor
Product QR code
Brand: VISHAY
Packaging DO-5
Delivery time
Packaging method Bulk
Standard packaging quantity 1
62.53  yuan 62.53yuan
1+:
$ 71.9141
10+:
$ 68.7874
100+:
$ 68.2246
250+:
$ 67.7869
500+:
$ 67.0990
1000+:
$ 66.7863
2500+:
$ 66.3486
5000+:
$ 65.9734
Quantity
1+
10+
100+
250+
500+
Price
$71.9141
$68.7874
$68.2246
$67.7869
$67.0990
Price $ 71.9141 $ 68.7874 $ 68.2246 $ 67.7869 $ 67.0990
Start batch production 1+ 10+ 100+ 250+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(4091) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/forward voltage: 1.1 V

Technical parameters/reverse recovery time: 0.6 µs

Technical parameters/Maximum reverse voltage (Vrrm): 1 kV

Technical parameters/forward current: 70 A

Technical parameters/Maximum forward surge current (Ifsm): 1.3 kA

Technical parameters/maximum reverse leakage current (Ir): 5 uA

Technical parameters/forward voltage (Max): 1.46 V

Technical parameters/forward current (Max): 70 A

Technical parameters/operating temperature (Max): 150 ℃

Technical parameters/operating temperature (Min): -65 ℃

Encapsulation parameters/installation method: Chassis

Package parameters/number of pins: 2

Encapsulation parameters/Encapsulation: DO-5

External dimensions/length: 20.02 mm

External dimensions/width: 17.35 mm

External dimensions/height: 22.9 mm

External dimensions/packaging: DO-5

Other/Packaging Methods: Bulk

Other/Manufacturing Applications: Industrial, Motor Drive and Control, Power Management

Compliant with standards/RoHS standards:
