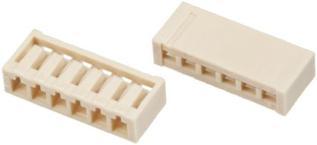

Model 15P-SCN
Description 2.5mm The shell design of these crimped, vertical, and 2.5mm pitch SCN connectors inside the board allows for easy insertion and secure locking of contacts onto high-density printed circuit boards. ###Please refer to typical inventory number 752-1882 for the 2.5mm SCN board internal contacts. ### 2.5mm Board-In - JST SCN Connector These JST Wire to Board Crimp style 2.5 mm pitch SCN Connectors are a Board-In type. The 2.5 mm pitch SCN Connectors provide high-density mounting in an efficient and economical manner.
Product QR code
Brand: JST
Packaging
Delivery time
Packaging method Bag
Standard packaging quantity 1
2.8  yuan 2.8yuan
5+:
$ 3.7760
25+:
$ 3.4963
50+:
$ 3.3005
100+:
$ 3.2166
500+:
$ 3.1606
2500+:
$ 3.0907
5000+:
$ 3.0627
10000+:
$ 3.0208
Quantity
5+
25+
50+
100+
500+
Price
$3.7760
$3.4963
$3.3005
$3.2166
$3.1606
Price $ 3.7760 $ 3.4963 $ 3.3005 $ 3.2166 $ 3.1606
Start batch production 5+ 25+ 50+ 100+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(3624) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 15

Technical parameters/number of rows: 1

Technical parameters/rated current (Max): 3 A

Technical parameters/operating temperature (Max): 85 ℃

Technical parameters/operating temperature (Min): -25 ℃

Encapsulation parameters/installation method: Through Hole

External dimensions/length: 39 mm

External dimensions/width: 3.9 mm

External dimensions/height: 3.9 mm

Other/Product Lifecycle: Active

Other/Packaging Methods: Bag

Compliant with standards/RoHS standards: RoHS Compliant
