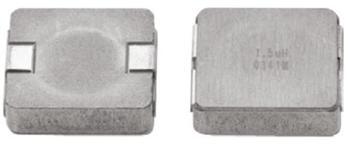

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model IHLP5050CEERR33M01
Description IHLP5050CE-01 Series magnetic shielding wire winding choke Vishay IHLP-5050CE-01 series high current thin shielded inductor. The IHLP-5050CE-01 series processes high instantaneous current peaks without saturation and has ultra-low buzzing noise due to its composite structure. The lowest DC resistance/μ H in this package size with a frequency range of up to 5.0 MHz is applicable to PDA/laptop/desktop/server devices; High current POL converter; Thin and high current power supply; Battery powered equipment; DC/DC converters in distributed power supply systems; DC/DC Converter for Field Programmable Gate Arrays (FPGAs) # # # Vishay Non standard Surface Mount Inductors (Chokes)
Product QR code
Brand: VISHAY
Packaging 5050
Delivery time
Packaging method Tape & Reel (TR)
Standard packaging quantity 1
5.28  yuan 5.28yuan
10+:
$ 6.3360
100+:
$ 6.0192
500+:
$ 5.8080
1000+:
$ 5.7974
2000+:
$ 5.7552
5000+:
$ 5.7024
7500+:
$ 5.6602
10000+:
$ 5.6390
Quantity
10+
100+
500+
1000+
2000+
Price
$6.3360
$6.0192
$5.8080
$5.7974
$5.7552
Price $ 6.3360 $ 6.0192 $ 5.8080 $ 5.7974 $ 5.7552
Start batch production 10+ 100+ 500+ 1000+ 2000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(3445) Minimum order quantity(10)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/rated current: 36.5 A

Technical parameters/tolerances: ±20 %

Technical parameters/inductance: 0.33 µH

Technical parameters/product series: IHLP

Technical parameters/inductance tolerance: ±20 %

Technical parameters/testing frequency: 0.1 MHz

Technical parameters/Resistance (DC): 0.0015 Ω

Technical parameters/operating temperature (Max): 125 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/resistance (DC Max): 1.5 mΩ

Encapsulation parameters/Encapsulation: 5050

External dimensions/length: 13.2 mm

External dimensions/height: 3.5 mm

External dimensions/packaging: 5050

Physical parameters/operating temperature: -55℃ ~ 125℃

Other/Packaging Methods: Tape & Reel (TR)

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
IHLW5050CEERR33M01 IHLW5050CEERR33M01 Vishay Semiconductor 完全替代
Ind High Current Shielded Wirewound 330nH 20% 100kHz 36.5A 5050 T/R
