Technical parameters/rated voltage (DC): 35.0 V
Technical parameters/working voltage: 35 VDC
Technical parameters/capacitors: 330 µF
Technical parameters/Equivalent series resistance (ESR): 130 mΩ
Technical parameters/tolerances: ±20 %
Technical parameters/product series: UPW
Technical parameters/Ripple current: 1050 mA
Technical parameters/Ripple current (high frequency): 682.5mA @120Hz
Technical parameters/Ripple current (low frequency): 1.05A @100kHz
Technical parameters/operating temperature (Max): 105 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/rated voltage: 35 V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: Radial, CAN
Packaging parameters/pin spacing: 5 mm
External dimensions/length: 16.0 mm
External dimensions/height: 16 mm
External dimensions/diameter: 10.0 mm
External dimensions/packaging: Radial, CAN
External dimensions/pin spacing: 5 mm
Physical parameters/medium materials: Aluminum Electrolytic
Physical parameters/operating temperature: -55℃ ~ 105℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Bulk
Other/Minimum Packaging: 1800
Other/Lifespan (hours): 5000 h
Other/Manufacturing Applications: General
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standard/REACH SVHC version: 2015/12/17
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

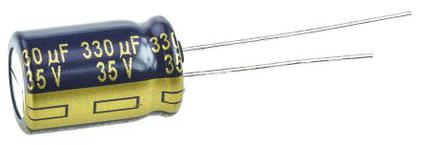

EEUFC1V331
|
Panasonic | 类似代替 | Radial, Can |
PANASONIC ELECTRONIC COMPONENTS EEUFC1V331 铝电解电容, AEC-Q200 FC系列, 330 µF, ± 20%, 35 V, 10 mm, 径向引线
|
||
EEUFC1V331B
|
Panasonic | 类似代替 | Radial, Can |
铝电解电容器/ FC Aluminum Electrolytic Capacitors/FC
|
