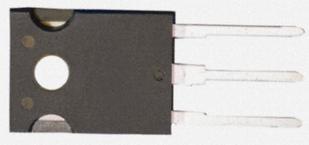

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model FMW47N60S1HF
Description FUJI ELECTRIC FMW47N60S1HF Power Field Effect Transistor, MOSFET, N-channel, 47 A, 600 V, 0.059 ohm, 10 V, 3 V
Product QR code
Brand: FUJI
Packaging TO-247-2
Delivery time
Packaging method
Standard packaging quantity 1
14.58  yuan 14.58yuan
5+:
$ 17.0551
50+:
$ 16.3262
200+:
$ 15.9181
500+:
$ 15.8160
1000+:
$ 15.7140
2500+:
$ 15.5974
5000+:
$ 15.5245
7500+:
$ 15.4516
Quantity
5+
50+
200+
500+
1000+
Price
$17.0551
$16.3262
$15.9181
$15.8160
$15.7140
Price $ 17.0551 $ 16.3262 $ 15.9181 $ 15.8160 $ 15.7140
Start batch production 5+ 50+ 200+ 500+ 1000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(7681) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of pins: 3

Technical parameters/drain source resistance: 0.059 Ω

Technical parameters/polarity: N-Channel

Technical parameters/dissipated power: 390 W

Technical parameters/threshold voltage: 3 V

Technical parameters/input capacitance: 4000pF @10V

Technical parameters/drain source voltage (Vds): 600 V

Technical parameters/leakage source breakdown voltage: 600 V

Technical parameters/Continuous drain current (Ids): 47A

Technical parameters/thermal resistance: 0.32℃/W (RθJC)

Technical parameters/Input capacitance (Ciss): 4000pF @10V(Vds)

Technical parameters/operating temperature (Max): 150 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/dissipated power (Max): 390 W

Encapsulation parameters/installation method: Through Hole

Package parameters/number of pins: 3

Encapsulation parameters/Encapsulation: TO-247-2

External dimensions/length: 15.9 mm

External dimensions/width: 5.03 mm

External dimensions/height: 20.95 mm

External dimensions/packaging: TO-247-2

Physical parameters/operating temperature: -55℃ ~ 150℃

Other/Product Lifecycle: Active

Other/Manufacturing Applications: Communication and Networking, Power Management, Power Management, Communications&Networking

Compliant with standards/RoHS standards: RoHS Compliant
