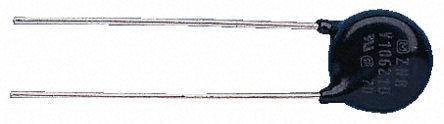

Model ERZV07D331
Description ZNR Series, 7mm diameter, Panasonic has a relatively large surge current handling capability compared to a compact structure. Compared to a standard transmission, it has increased surge current handling capability by 2 types | diameter (nominal/maximum) (mm) | pitch (mm) | height (on printed circuit board) (mm) ------------------------------------ ERZV05 | 5/7 | 5 ± 1 | 10 ERZV07 | 7/8.5 | 5 ± 1 | 11.5 ERZV10 | 10/12.5 | 7.5 ± 1 | 15.5 ERZV14 | 14/16 | 7.5 ± 1 | 19 ERZV20 | 20/20/21.5 | 10 ± 1 | 24.5 # # # # Transient voltage suppressor (radial) Metal oxide varistor
Product QR code
Brand: Panasonic
Packaging Disc 7mm
Delivery time
Packaging method
Standard packaging quantity 1
0.61  yuan 0.61yuan
10+:
$ 0.8276
50+:
$ 0.7846
100+:
$ 0.7540
300+:
$ 0.7356
500+:
$ 0.7172
1000+:
$ 0.6988
2500+:
$ 0.6712
5000+:
$ 0.6651
Quantity
10+
50+
100+
300+
500+
Price
$0.8276
$0.7846
$0.7540
$0.7356
$0.7172
Price $ 0.8276 $ 0.7846 $ 0.7540 $ 0.7356 $ 0.7172
Start batch production 10+ 50+ 100+ 300+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(2021) Minimum order quantity(10)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/rated voltage (DC): 270 V

Technical parameters/rated voltage (AC): 210 V

Technical parameters/capacitors: 130 pF

Technical parameters/rated power: 250 mW

Technical parameters/clamp voltage: 545 V

Technical parameters/operating temperature (Max): 85 ℃

Technical parameters/operating temperature (Min): -40 ℃

Technical parameters/rated voltage (DC Max): 270 V

Technical parameters/rated voltage (AC Max): 210 V

Encapsulation parameters/installation method: Through Hole

Encapsulation parameters/Encapsulation: Disc 7mm

External dimensions/width: 5.1 mm

External dimensions/height: 11.5 mm

External dimensions/packaging: Disc 7mm

External dimensions/thickness: 5.1 mm

Physical parameters/materials: Zinc Oxide

Physical parameters/operating temperature: -40℃ ~ 85℃

Other/Product Lifecycle: Unknown

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Contains Lead

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/06/15
