Technical parameters/number of contacts: 10
Technical parameters/polarity: Female
Technical parameters/Contact electroplating: Gold
Technical parameters/rated current: 2 A
Technical parameters/insulation resistance: 1000MΩ @500VDC
Technical parameters/number of rows: 2
Technical parameters/number of pins: 10
Technical parameters/Contact resistance: <30mΩ @100mA
Technical parameters/rated voltage: 250 V
Encapsulation parameters/installation method: Surface Mount
Packaging parameters/pin spacing: 2.00 mm
External dimensions/length: 17.5 mm
External dimensions/width: 5 mm
External dimensions/height: 5.95 mm
External dimensions/pin spacing: 2.00 mm
Physical parameters/shell color: Black
Physical parameters/color: Beige
Physical parameters/contact material: Phosphor Copper
Physical parameters/materials: Polyamide (PA)
Physical parameters/operating temperature: -30℃ ~ 85℃
Physical parameters/shell material: Plastic
Other/Product Lifecycle: Active
Other/Packaging Methods: Tube
Other/Manufacturing Applications: General
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
DF11-10DS-2V(50)
|
Hirose Electric | 完全替代 |
Conn Socket Strip SKT 10POS 2mm Solder ST SMD
|
|||

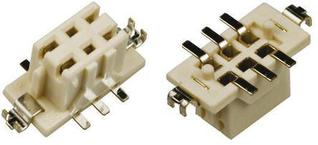

DF11CZ-10DS-2V(22)
|
Hirose Electric | 功能相似 | Surface Mount |
Hirose 2mm 节距 SMT 直向插座连接器 - DF 11 系列 DF11 系列直向、SMT 安装、线对板、双排插座连接器，触点节距 2mm。 这些 2mm 印刷电路板安装双排插座连接器具有一个紧凑型、5mm 宽、UL94V-0 聚酰胺主体，并带有镀锡或镀金黄铜触点。 ### 注 DF11 2mm SMT 插座连接器，部件号 DF11CZ-xxxx-xx(22)，带镀锡触点 DF11 2mm SMT 引脚管座连接器部件号 DF11CZ-xxxx-xx(52)，带镀金触点 ### 2.0mm 双排连接器 - Hirose DF11 ### 2.0mm 双排连接器 - Hirose 压接类型板到线连接器系列 双排 2mm 节距触点 压缩 5mm 宽度 AWG 22 到 30 简单的锁定机制 肋纹防止错误插入 ### 标准 UL E52653, CSA LR95109
|
