Technical parameters/rated voltage (DC): 25.0 V
Technical parameters/working voltage: 25 VDC
Technical parameters/capacitors: 10 µF
Technical parameters/tolerances: ±20 %
Technical parameters/product series: UVR
Technical parameters/Ripple current: 55 mA
Technical parameters/Ripple current (high frequency): 55mA @120Hz
Technical parameters/Ripple current (low frequency): 110mA @10kHz
Technical parameters/operating temperature (Max): 85 ℃
Technical parameters/operating temperature (Min): -40 ℃
Technical parameters/rated voltage: 25 V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: Radial, CAN
Packaging parameters/pin spacing: 2 mm
External dimensions/length: 11 mm
External dimensions/height: 11 mm
External dimensions/diameter: 5.00 mm
External dimensions/packaging: Radial, CAN
External dimensions/pin spacing: 2 mm
Physical parameters/medium materials: Aluminum Electrolytic
Physical parameters/operating temperature: -40℃ ~ 85℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Bulk
Other/Minimum Packaging: 6000
Other/Lifespan (hours): 2000 h
Other/Manufacturing Applications: General
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standard/REACH SVHC version: 2015/12/17
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
UVR1C100MDD
|
Nichicon | 功能相似 | Radial, Can |
Nichicon VR 系列 Nichicon VR 系列铝电解电容器是高可靠性电容器，额定寿命长达 2000 小时。 VR 系列电容器提供高温度范围、高电压、低阻抗和高波纹电流。 高可靠性 高波纹电流 长寿命，长达 2000 小时 无铅回流焊接 电容容差 (%) | 20 ---|--- 温度范围 ( ° C) | -40 至 +85 泄漏电流 | 0.01 CV 或 3μA，以较大值为准 85ºC 条件下的预期寿命 | 2000 小时 ### 径向，85°C
|
||

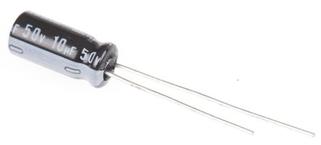

UVR1H100MDD
|
Nichicon | 功能相似 | Radial, Can |
Nichicon VR 系列 Nichicon VR 系列铝电解电容器是高可靠性电容器，额定寿命长达 2000 小时。 VR 系列电容器提供高温度范围、高电压、低阻抗和高波纹电流。 高可靠性 高波纹电流 长寿命，长达 2000 小时 无铅回流焊接 电容容差 (%) | 20 ---|--- 温度范围 ( ° C) | -40 至 +85 泄漏电流 | 0.01 CV 或 3μA，以较大值为准 85ºC 条件下的预期寿命 | 2000 小时 ### 径向，85°C
|
