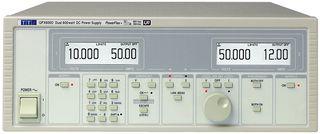

Model QPX600D

Description 1.2kW PowerFlex，80V/50A The programmable DC power supplies QPX600D and DP are dual output power supplies, each providing dual independent or dual tracking outputs of 600 W. The PowerFlex+design offers a wide range of voltage/current combinations, with each output reaching up to 80V and 50A. Both models include analog interfaces. DP models include USB, RS232, GPIB, and LAN (Ethernet), supporting LXI. The ultra wide range power supply with dual independent or dual tracking 600W output voltage/current combination has a maximum voltage of 80V and a maximum current of 50A inside the casing. Only voltage isolation tracking is available, or when the voltage and current reach 160V or 100A, the intelligent metering and tracking function facilitates serial or parallel wiring with low output noise and ripple - fast transient response of 1mV, high setting resolution, variable OVP and OCP trip voltage and current analog control interfaces GPIB, RS-232, USB and LAN (LXI) interfaces * * output * * | ------- | output number | 2 voltage and current | maximum value of 80V or maximum value of 50A, depending on the PowerFlex+limiting (maximum value of 600W) operating mode | constant voltage or constant current load with automatic switching and line Adjustment | Output noise | Usually voltage regulation | Using floating-point digital input or spinning wheel; Resolution 1mV current regulation | using floating-point digital input or spinning wheel; Resolution 10mA Setting Accuracy | Voltage: ± (0.1%+5 mV), Current: ± (0.3%+10 mA) Setting Resolution | Voltage: 1mV; Current: 10mA Instrument Functions | Voltage, Current, Power (VXI), Impedance (V/I) Instrument Accuracy | Voltage ± (0.1%+2 bits), Current ± (0.3%+2 bits) Instrument Resolution | Voltage 1mV; Current 10mA Tracking Mode | Output is always electrically isolated and can be independently or tracked. It can only track voltage or track voltage and current OVP and OCP | 2V to 90V at a pitch of 0.1V; 2A to 55A DC output switch with a pitch of 0.1A | Voltage zeroing remote sensing whe

Brand: AIM-TTI Instruments

Packaging

Delivery time

Packaging method

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(8338) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated power: 1.2 kW

Technical parameters/number of output interfaces: 2

Technical parameters/output voltage: 0.80 VDC

Technical parameters/output current: 0.50 A

Technical parameters/number of channels: 2

Technical parameters/output voltage (Max): 80 V

Technical parameters/output voltage (Min): 0 V

Technical parameters/output current (Max): 50 A

Technical parameters/output current (Min): 0 A

Technical parameters/power supply voltage: 110VAC ~ 240VAC

Technical parameters/power supply voltage (Max): 240 VAC

Technical parameters/power supply voltage (Min): 110 VAC

External dimensions/length: 415 mm

External dimensions/width: 350 mm

External dimensions/height: 130 mm

Physical parameters/weight: 9.2 kg

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/06/15

Alternative material

	Model	Brand	Similarity	Encapsulation	Introduction	Data manual
	QPX600DP	台湾富晶通	完全替代		双输出 1.2kW PowerFlex，80V/50A 可编程直流电源 QPX600D 和 DP 是双输出电源，每个提供双独立或双跟踪输出 600 W。 PowerFlex + 设计提供了种类丰富的电压/电流组合，每个输出高达 80V 和 50A。两种型号都包括模拟接口。 DP 型号包括 USB、RS232、GPIB 和 LAN（以太网），支持 LXI。双独立或双跟踪 600W 输出电压/电流组合的超宽范围电源外壳内最大电压 80V，最大电流 50A 仅电压隔离跟踪，或电压和电流当高达 160V 或 100A 时，智能计量和跟踪功能便于帮助串行或并行布线低输出噪声和纹波 - 快速瞬态响应 1mV 高设置分辨率可变 OVP 和 OCP 跳闸电压和电流的模拟控制接口 GPIB、RS-232、USB 和 LAN (LXI) 接口输出 \| ---\|--- 输出数目 \| 2 电压和电流 \| 最大值 80V 或最大值 50A，取决于 PowerFlex+ 限制（最大值 600W）操作模式 \| 带有自动切换的恒压或恒流负载和线路调节 \| 输出噪音 \| 通常为电压调节 \| 利用浮点数字输入或转轮；分辨率 1mV 电流调节 \| 利用浮点数字输入或转轮；分辨率 10mA 设置精确度 \| 电压：± (0.1% +5 mV)，电流：± (0.3% +10 mA) 设置分辨率 \| 电压：1mV；电流：10mA 仪表功能 \| 电压、电流、功率 (VXI)、阻抗 (V/I) 仪表精确度 \| 电压 ±（0.1% + 2 位），电流±（0.3% + 2 位）仪表分辨率 \| 电压 1mV；电流 10mA 跟踪模式 \| 输出始终电气隔离并可独立或跟踪可仅跟踪电压或跟踪电压和电流 OVP 和 OCP \| 2V 至 90V 以 0.1V 节距；2A 至 55A 以 0.1A 节距直流输出开关 \| 关闭时电压置零远程感测 \| 可选为本地或远程（后方无螺钉端子感应）输出端子 \| 后部安装高电流安全接线柱端子模拟接口（数码） \| 模拟控制电压（0 - 5V 或 0 - 10V）。 V 和 I 检测器输出。跳闸输出信号接口 (QPX600DP) \| 隔离数字远程控制（仅 QPX600DP） RS-232 \| 标准 RS232/RS423 接口，使用 9 引脚 D 型连接器 USB \| 标准 USB 硬件连接。随附设备驱动程序，用于 Windows 操作系统，包括 Windows 7。可用作虚拟 COM 端口。以太网 (LAN) \| 标准 10/100 Base T 硬件连接，可连接局域网或直接连接单个 PC。随附 IVI 驱动程序符合 LXI 标准 \| LAN 接口符合 LXI-C 标准 GPIB \| 符合 IEEE488.1 和 IEEE488.2 通用 \| 电压 \| 交流输入：110 至 240 V ±10% 50/60Hz。安装类别 II 尺寸和重量 \| 350 x 130 (3U) x 415mm（宽 x 高 x 深），8.5kg 认证 \| 符合 EN 61010-1（安全性）和 EN61326 (EMC) 机架安装 \| 与 TTi 电源机架套件 RM460 型兼容 ### 标准 EN 61010-1, EN61326 ### 随附用户手册、电源线和包含驱动器软件的 CD ### Aim-TTi - PowerFlex 调节
