Technical parameters/rated voltage (DC): 10 V
Technical parameters/capacitors: 330 µF
Technical parameters/tolerances: ±20 %
Technical parameters/Ripple current: 555 mA
Technical parameters/Ripple current (high frequency): 360.8mA @120Hz
Technical parameters/Ripple current (low frequency): 555mA @100kHz
Technical parameters/operating temperature (Max): 105 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/rated voltage: 10 V
Encapsulation parameters/installation method: Through Hole
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: Radial, CAN
Packaging parameters/pin spacing: 3.5 mm
External dimensions/length: 11 mm
External dimensions/height: 11.5 mm
External dimensions/diameter: 8.00 mm
External dimensions/packaging: Radial, CAN
External dimensions/pin spacing: 3.5 mm
Physical parameters/operating temperature: -55℃ ~ 105℃
Other/Product Lifecycle: Unknown
Other/Packaging Methods: Bulk
Other/Lifespan (hours): 2000h @105℃
Other/Manufacturing Applications: Industrial, Automotive, Industrial, Portable Devices, Portable Equipment, Power Management, Power Management, Automotive, Consumer Electronics, Consumer Electronics
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/06/15
Customs information/ECCN code: EAR99
Customs information/HTS code: 8532220040
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
EEU-FC1C331
|
Panasonic | 类似代替 | Radial, Can |
PANASONIC ELECTRONIC COMPONENTS EEU-FC1C331 铝电解电容, AEC-Q200 FC系列, 330 µF, ± 20%, 16 V, 8 mm, 径向引线
|
||

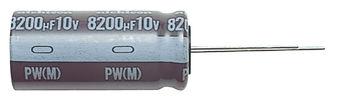

UPW1A331MPD
|
Nichicon | 功能相似 | Radial, Can |
PW 系列径向 6.3 到 35V ### 径向 105°C
|
