Home Page   Light source and emitter   LED   light-emitting diode   HLMP-EL1A-Z1KDD
Warm reminder: The pictures are for reference only. The actual product may vary
Collection

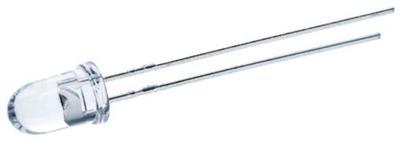

Model HLMP-EL1A-Z1KDD
Description Avago HLMP-ED/EG/EH/EL The HLMP EDxx, HLMP EGxx, HLMP EHxx, and HLMP ELxx series of Avago Technologies are ultra-high brightness LED lights. This series of precision optical AllnGaP LEDs provides extremely high light output and wide field of view readability in daylight. They are also very reliable. AllnGaP technology enables these LEDs to provide stable light output over the long term. The HLMP-ED/EG/EH/EL series are colorless LED lights packaged in T-1 3/4 (5mm) and include second-generation optical components. At specific viewing cone angles, this can generate precise spatial radiation patterns. HLMP-ED/EG/EH/EL LED is made of optical grade epoxy material, which can provide high temperature and humidity resistance performance in outdoor signal and signage applications. It contains UV-A and UV-B inhibitors that can reduce the effects of long-term exposure to direct sunlight. Suitable applications for HLMP-ED/EG/EH/EL include:; Traffic management, solar signage, and commercial outdoor advertising. Functions of HLMP-ED/EG/EH/EL LED: \ - Viewing angles: 15 °, 23 °, 30 ° \ - High luminous output \ - Excellent moisture resistance # # # Visible light LED, Avago Technologies
Product QR code
Brand: Broadcom
Packaging T-1
Delivery time
Packaging method Each
Standard packaging quantity 1
2.35  yuan 2.35yuan
5+:
$ 3.1739
25+:
$ 2.9388
50+:
$ 2.7742
100+:
$ 2.7037
500+:
$ 2.6566
2500+:
$ 2.5979
5000+:
$ 2.5743
10000+:
$ 2.5391
Quantity
5+
25+
50+
100+
500+
Price
$3.1739
$2.9388
$2.7742
$2.7037
$2.6566
Price $ 3.1739 $ 2.9388 $ 2.7742 $ 2.7037 $ 2.6566
Start batch production 5+ 25+ 50+ 100+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(2415) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of pins: 2

Technical parameters/forward voltage: 2.1 V

Technical parameters/wavelength: 594.5 nm

Technical parameters/luminous intensity: 21 cd

Technical parameters/perspective: 15°

Technical parameters/peak wavelength: 594 nm

Technical parameters/test current: 20 mA

Technical parameters/forward current: 20 mA

Encapsulation parameters/installation method: Through Hole

Encapsulation parameters/Encapsulation: T-1

External dimensions/height: 8.91 mm

External dimensions/packaging: T-1

Physical parameters/color: Amber

Other/Product Lifecycle: Active

Other/Packaging Methods: Each

Other/Manufacturing Applications: Traffic signal, Variable message signs, Signaling, Commercial outdoor advertising signs, LED lighting, Commercial outdoor advertising marquees, Signalling, Work zone warning lights, Solar Power Signs, Pedestrian signals, LED Lighting

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standard/REACH SVHC version: 2015/12/17

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
HLMP-EL1A-Z1KDD HLMP-EL1A-Z1KDD Broadcom 功能相似 T-1
Avago 5mm (T-1 3/4) 琥珀色 LED, 15 ° 通孔
PDF
SSL-LX5093SYC SSL-LX5093SYC Lumex 功能相似 T-1
LUMEX SSL-LX5093SYC 发光二极管, 黄色, 通孔安装, T-1 3/4 (5mm), 20 mA, 2.1 V, 590 nm
PDF
