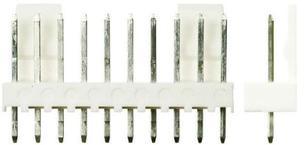

Model 22-29-2141
Description 6410 The series is compatible with the 2695 and 6471 series housings. ###The 2.54mm Molex KK series Molex KK interconnect system provides a simple and economical solution for multipole connections on printed circuit boards. The Molex KK series includes connectors from 2.54mm pitch wires to circuit boards, including crimping, IDT, and printed circuit board sockets, crimping terminal blocks, straight tube sockets, and 90 ° printed circuit board sockets, as well as auxiliary tools. There are 2 to 15 types of IDC sockets with a pitch of 0.1in. The socket includes a high-voltage contact direct insertion friction lock that is very suitable for daisy chain connections or strong earthquake applications, which helps prevent accidental disconnection. The printed circuit board socket with contacts has a positive cantilever wiping effect. Generally, the socket housing 6471 series accepts crimping terminals (stock number 467-598, ordered separately). Generally, the socket housing 2695 series accepts crimping terminals (stock number 670-2266, ordered separately). The socket and polarization key are sold separately or in kits. Contact: | ------- | --- Tube socket/IDT socket | Tin plated brass socket (crimping/printed circuit board). |Tin plated phosphor bronze insulation | 94V-0 grade nylon | IDT model, UL94V-2 maximum voltage | 250 V (AC) maximum current | 2.5A working temperature per circuit | 0 ° C to+70 ° C pin size | 0.64mm square recommended printed circuit board hole diameter size | 1.19mm ± 0.05mm
Product QR code
Brand: Molex
Packaging
Delivery time
Packaging method Bag
Standard packaging quantity 1
11.23  yuan 11.23yuan
5+:
$ 13.1333
50+:
$ 12.5720
200+:
$ 12.2577
500+:
$ 12.1791
1000+:
$ 12.1006
2500+:
$ 12.0108
5000+:
$ 11.9546
7500+:
$ 11.8985
Quantity
5+
50+
200+
500+
1000+
Price
$13.1333
$12.5720
$12.2577
$12.1791
$12.1006
Price $ 13.1333 $ 12.5720 $ 12.2577 $ 12.1791 $ 12.1006
Start batch production 5+ 50+ 200+ 500+ 1000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(5365) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 14

Technical parameters/rated current: 4 A

Technical parameters/insulation resistance: 1000 MΩ

Technical parameters/number of rows: 1

Technical parameters/hot wire testing standards: Non-Compliant

Technical parameters/halogen-free state: Low Halogen

Technical parameters/direction: Vertical

Technical parameters/number of circuits: 14

Technical parameters/number of pins: 14

Technical parameters/number of plug and unplug cycles: 25

Technical parameters/rated current (Max): 4A/contact

Technical parameters/operating temperature (Max): 80 ℃

Technical parameters/operating temperature (Min): -40 ℃

Technical parameters/rated voltage (Max): 250 V

Technical parameters/rated voltage: 250 V

Technical parameters/Contact resistance (Max): 10 mΩ

Encapsulation parameters/installation method: Through Hole

External dimensions/height: 11.7 mm

Physical parameters/shell color: White

Physical parameters/contact material: Brass

Physical parameters/operating temperature: -40℃ ~ 80℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Bag

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Customs information/ECCN code: EAR99

Customs information/HTS code: 8536694040

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
22-27-2141 22-27-2141 Molex 功能相似 Through Hole

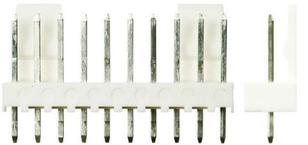

MOLEX 22-27-2141 线至板连接器, KK 6410系列, 14 触点, 针座, 2.54 mm, 通孔安装, 1 排
