Technical parameters/number of contacts: 92
Technical parameters/polarity: Male
Technical parameters/Contact electroplating: Gold
Technical parameters/number of rows: 2
Technical parameters/number of pins: 184
Encapsulation parameters/installation method: Through Hole
Packaging parameters/pin spacing: 1.27 mm
External dimensions/length: 128 mm
External dimensions/width: 8.89 mm
External dimensions/pin spacing: 1.27 mm
Physical parameters/shell color: White
Physical parameters/color: Natural
Physical parameters/contact material: Phosphor Bronze
Physical parameters/shell material: Thermoplastic
Other/Product Lifecycle: Unknown
Other/Packaging Methods: Bulk
Compliant with standards/RoHS standards: Non-Compliant
Compliant with standards/lead standards: Contains Lead
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

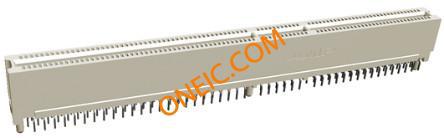

5145166-4
|
TE Connectivity | 功能相似 | - |
TE Connectivity 1.27mm PCI 板边连接器 PCI 印刷电路板安装板边连接器，具有 1.27mm 节距。 这些 PCI 印刷电路板安装板边连接器提供 32 位或 64 位（库存号 745-5703 和 864-3829）总线宽度，由白色热塑性材料制成，带压制架线塔，以帮助固定印刷电路板（库存号 745-5703 和 864-3829 具有 3 个架线塔，其他的具有 2 个）。 ### 存储卡连接器 提供多个市场领先制造商的多种存储卡和 PCMCIA 卡连接器。 电流额定值 0.5A 产品组合表 | | | | | | | ---|---|---|---|---|---|---|--- 应用 | 极数 | 离心度 | 框架 套件 | 68 引脚 插座 | 后面 连接器 | 插头 单位 | 插头 外罩 通用 类型 | 15 | 0.9 | NX1-15T-KT9K | IC1K-68RD-1.27SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV | 15 | 0.3 | NX1-15T-KT3K | IC1K-68RD-1.27SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV | 25 | 0.9 | NX1-25T-KT9K | IC1K-68RD-1.27SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV | 25 | 0.3 | NX1-25T-KT3K | IC1K-68RD-1.27SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV | 32 | 0.9 | NX1-32T-KT9K | IC1K-68RD-1.27SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1 | 32 | 0.3 | NX1-32T-KT3K | IC1K-68RD-1.27SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1 卡 总线 类型 | 15 | 0.9 | NX1BL-15T-KT9B | IC9-68RD-0.635SFA | NX60TB-15SAA9-SP | NX30TA-15PAA | NX-15T-CV | 15 | 0.3 | NX1BL-15T-KT3B | IC9-68RD-0.635SF | NX60TB-15SAA3-SP | NX30TA-15PAA | NX-15T-CV | 25 | 0.9 | NX1BL-25T-KT9B | IC9-68RD-0.635SFA | NX60TA-25SAA9-SP | NX30TA-25PAA | NX-25T-CV | 25 | 0.3 | NX1BL-25T-KT3B | IC9-68RD-0.635SF | NX60TA-25SAA3-SP | NX30TA-25PAA | NX-25T-CV | 32 | 0.9 | NX1BL-32T-KT9B | IC9-68RD-0.635SFA | NX60T-32SAA9-SP | NX30TA-32PAA | NX-32TA-CV1 | 32 | 0.3 | NX1BL-32T-KT3B | IC9-68RD-0.635SF | NX60TA-32SAA3-SP | NX30TA-32PAA | NX-32TA-CV1
|
