Technical parameters/number of contacts: 64
Technical parameters/insulation resistance: 1000GΩ @100VDC
Technical parameters/number of rows: 2
Technical parameters/number of pins: 64
Technical parameters/Contact resistance: <20mΩ @100mA
Technical parameters/rated current (Max): 2 A
Technical parameters/Contact resistance (Max): 20 mΩ
Encapsulation parameters/installation method: Through Hole
Encapsulation parameters/Encapsulation: -
External dimensions/length: 95 mm
External dimensions/width: 8.1 mm
External dimensions/height: 11.5 mm
External dimensions/packaging: -
Physical parameters/shell color: Gray
Physical parameters/contact material: Copper Alloy
Physical parameters/operating temperature: -55℃ ~ 85℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tray
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Customs information/ECCN code: EAR99
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
5650859-5
|
TE Connectivity | 功能相似 | - |
AMP FROM TE CONNECTIVITY 5650859-5 连接器, DIN41612, PCB, 母, 64路
|
||

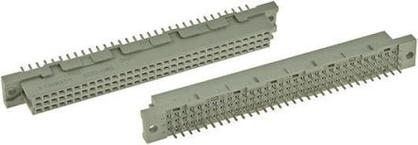

5650860-5
|
TE Connectivity | 功能相似 | - |
TE Connectivity Eurocard 连接器组件 TE 连接 Eurocard 系列 DIN41612 连接器组件包括类型 B、B/2、C、C/2、F&G 、M、Q&R、R 和 R/2。 ### 注 库存号 681-1944 有 3 排，但是只有外部 2 排装有触点。 ### DIN41612 - TE Connectivity
|
||
5650861-5
|
TE Connectivity | 功能相似 | - |
AMP FROM TE CONNECTIVITY 5650861-5 连接器, DIN41612, PCB, 母, 64路
|
