Model SQMW56R8J

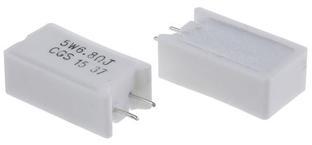

Description 5W SQM5 The TE Connectivity SQ series high-power resistors have a good non alkaline ceramic core, contained in a ceramic housing and sealed with inorganic silicone filling. This makes the SQ series have high insulation resistance, low surface temperature, excellent TCR, and a completely fire-resistant structure. The SQ series resistors are particularly suitable for any application that requires efficient thermal performance. The rated power of the resistor at 70 ° C for fire prevention is 5W. The resistor is marked with a maximum resistance value of 700V for overload voltage and 350V for working voltage. It is suitable for small batch production, development, and R&D departments. # # Wire winding, radial -4W/5W/7W

Brand: TE Connectivity

Packaging 径向引线

Delivery time

Packaging method Bulk

Standard packaging quantity 1

5+:

$ 2.5448

25+:

$ 2.3563

50+:

$ 2.2243

100+:

$ 2.1678

500+:

$ 2.1301

2500+:

$ 2.0829

5000+:

$ 2.0641

10000+:

$ 2.0358

Price	$ 2.5448	$ 2.3563	$ 2.2243	$ 2.1678	$ 2.1301
Start batch production	5+	25+	50+	100+	500+

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(2162) Minimum order quantity(5)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC): 350 V

Technical parameters/tolerances: ±5 %

Technical parameters/rated power: 5 W

Technical parameters/resistance: 6.8 Ω

Technical parameters/resistance deviation: ±5 %

Technical parameters/operating temperature (Max): 250 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/rated voltage: 350 V

Encapsulation parameters/installation method: Through Hole

Package parameters/number of pins: 2

Encapsulation parameters/Encapsulation: Radial lead

External dimensions/length: 13 mm

External dimensions/width: 10 mm

External dimensions/height: 25 mm

External dimensions/foot length: 3.5 mm

External dimensions/packaging: Radial lead

Physical parameters/operating temperature: -55℃ ~ 250℃

Physical parameters/temperature coefficient: ±300 ppm/℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Bulk

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: lead-free

Compliant with standards/ELV standards: Compliant

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/06/15

Customs information/ECCN code: EAR99

Customs information/HTS code: 8533210080
