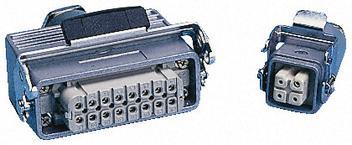

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model 10432000+19429500
Description H-A Cable sockets, couplers - metal body heavy-duty connectors # # # Note that each connector has an additional grounding pin, for example, a 3-channel coupler is actually 3P+E. ###The metal socket kit has spiral terminals with wire protection blades that can accept cables up to a maximum of 2.5mm ². The contacts are plated with hard silver copper alloy, and the plug and socket are interchangeable, allowing for device entry (fixed plug) and free cable installation socket installation. Individual grounding connections can be established through all plugs. Cable installation types include sealing circular cables to IP54 and IP65 protected compression sealed tubes (see technical specifications for details). Although compact in size, this series is still suitable for C-group (industrial) 250V AC working environments. Size: The 3 and 4-way H-A series connectors have been tested to comply with 10A and 440Vac models and can be provided as separate components in kit form. The 3rd and 4th versions are available in plastic and metal body models, with only metal body models available for the 10th to 48th versions. ###Size: 10 and 16 way # # # cable plug, side connected to surface mount socket panel mounted socket cable plug, top connected # # # Size: 32//48 way - gland size PG29 # # # cable plug, side connected to cable plug, top connected to surface mount socket (only 32 way) panel mounted socket metal body socket connector kit * * Note: * * Each connector has an additional grounding pin - for example, 3 way is actually 3P+E working voltage (plastic and 10/16/32/48 way metal body) | 440V AC ---3 and 4 way | 250V AC test voltage | 2kV AC with screw terminated contact resistance | Working of 2.5mm2 wire at ambient temperature (Tamb) Current (A) | Tamb | 3/4 channels | 10 channels | 16 channels | 32 channels | 48 channels --------------------------------40 ° C | 10A | 10A | 10A | 10A 60 ° C C | 10A | 10A | 10A | 9A 80 ° C | 10A | 9A | 7 · 5A | 6A | 4A Temperature Range | -40 ° C to+125 ° C --- | --- Insulation Group | VDE 011
Product QR code
Brand: Contact Connectors
Packaging
Delivery time
Packaging method
Standard packaging quantity 1
141.12  yuan 141.12yuan
1+:
$ 162.2869
10+:
$ 158.0533
50+:
$ 154.8075
100+:
$ 153.6786
200+:
$ 152.8319
500+:
$ 151.7029
1000+:
$ 150.9973
2000+:
$ 150.2917
Quantity
1+
10+
50+
100+
200+
Price
$162.2869
$158.0533
$154.8075
$153.6786
$152.8319
Price $ 162.2869 $ 158.0533 $ 154.8075 $ 153.6786 $ 152.8319
Start batch production 1+ 10+ 50+ 100+ 200+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(5380) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 4

Technical parameters/rated current: 10 A

Technical parameters/rated voltage: 250 VAC

Other/Product Lifecycle: Active

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free
