Technical parameters/number of contacts: 32
Technical parameters/polarity: Male
Technical parameters/Contact electroplating: Gold
Technical parameters/rated voltage (AC): 330 V
Technical parameters/rated current: 1.5 A
Technical parameters/insulation resistance: 1.00 TΩ
Technical parameters/number of rows: 3
Technical parameters/Flammability level: UL 94 V-0
Technical parameters/number of pins: 96
Technical parameters/Contact resistance: 15.0 mΩ
Technical parameters/number of plug and unplug cycles: 500
Encapsulation parameters/installation method: Solder
Packaging parameters/pin spacing: 2.54 mm
External dimensions/length: 94 mm
External dimensions/height: 11.1 mm
External dimensions/pin spacing: 2.54 mm
Physical parameters/color: Light Gray
Physical parameters/contact material: Copper Alloy
Physical parameters/materials: Polyester
Physical parameters/operating temperature: -55℃ ~ 125℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tray
Other/Manufacturing Applications: Industrial, industry
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/06/15
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
09 02 132 6931
|
Harting Technology Group | 功能相似 |
HARTING 09 02 132 6931 连接器, DIN 41612, Type B系列, 32 触点, 插头, 2.54 mm, 1排, a
|
|||

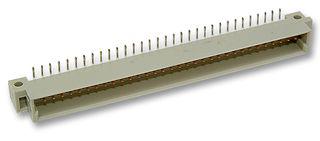

09 02 132 7931
|
Harting Technology Group | 功能相似 | Through Hole |
HARTING 09 02 132 7931 连接器, DIN 41612, Type B系列, 32 触点, 插头, 2.54 mm, 1排, a
|
