Technical parameters/rated voltage (DC): 50.0 V
Technical parameters/working voltage: 50 V
Technical parameters/insulation resistance: 100 GΩ
Technical parameters/capacitors: 470 pF
Technical parameters/tolerances: ±5 %
Technical parameters/dielectric properties: C0G/NP0
Technical parameters/operating temperature (Max): 125 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/rated voltage: 50 V
Encapsulation parameters/installation method: Surface Mount
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation (metric): 1608
Encapsulation parameters/Encapsulation: 0603
External dimensions/length: 1.6 mm
External dimensions/width: 0.032 in
External dimensions/height: 0.9 mm
Dimensions/Packaging (Metric): 1608
External dimensions/packaging: 0603
External dimensions/thickness: 0.034 in
Physical parameters/materials: C0G/-55℃~+125℃
Physical parameters/operating temperature: -55℃ ~ 125℃
Physical parameters/temperature coefficient: ±30 ppm/℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tape & Reel (TR)
Other/Minimum Packaging: 4000
Other/Manufacturing Applications: Industrial, General, Power Management, Consumer Electronics, Consumer Electronics, Portable Devices, Industrial, Power Management, Portable Devices
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/12/17
Customs information/ECCN code: EAR99
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

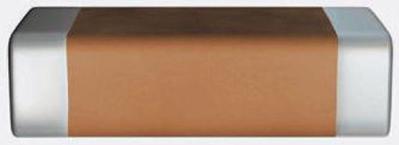

06035A471J4T2A
|
AVX | 完全替代 | 0603 |
AVX 06035A471J4T2A 多层陶瓷电容器, 表面贴装, AEC-Q200 MLCC系列, 470 pF, ± 5%, C0G / NP0, 50 V, 0603 [1608 公制]
|
||
C1608C0G1H471J
|
TDK | 完全替代 | 0603 |
Cap Ceramic 470pF 50V C0G 5% SMD 0603 125℃ T/R
|
