Model 350550-7

Description Mate-N-Lok Contact, used for sealing connectors and installing Mate-N-Lock series male and female connector packages, can replace standard contact. Insertion contacts are divided into two types: one is fixed type, used together with 2 to 4 channel packages; The second type is the separation type, which is recommended to be used together with 6 to 15 way packages to reduce connector insertion force. Non perforated pins are used to prevent holes from containing contacts. A separate tool is provided for Mate-N-Lok sealed connectors, refer to stock number 366-2055 # # TE Connectivity Universal MATE-N-LOK ™ The series fully polarized plug/socket coupling housing can mix forward locking pins and socket contacts in the same housing to safely handle matching and non matching connectors. It supports a wide range of wire and wire sizes and provides high-quality ratchet driven comfortable handle crimping tools with a pitch of 6.35 millimeters (0.25 inches). To convert to IP splash rating, order sealed accessories. Please refer to inventory number 366-1901 for general power coupling and power to board connectors. Reliable and durable, suitable for various industrial applications. The recommended panel thickness is 0.76 to 2.28. Maximum rated current (A): | ------- | --- Suspended plug/socket | 15 printed circuit board plug | 12 rated voltage (Vac/dc) | 600 dielectric withstand voltage (kV) | 5 circuit to circuit (kV) | 10 insulation resistance (M Ω) | 1000 maximum contact resistance (m Ω) | 3.5 temperature range (° C) | -55 →+105 bonding times | 50 insulation materials UL94V-2 | Natural polyamide insulation material UL94V-0 | White opaque nylon 6.6 contact material | Copper, tin plated contact material (vertical plug) | phosphor bronze, tin plated

Brand: TE Connectivity

Packaging -

Delivery time

Packaging method Bag

Standard packaging quantity 1

10+:

$ 6.5520

100+:

$ 6.2244

500+:

$ 6.0060

1000+:

$ 5.9951

2000+:

$ 5.9514

5000+:

$ 5.8968

7500+:

$ 5.8531

10000+:

$ 5.8313

Price	$ 6.5520	$ 6.2244	$ 6.0060	$ 5.9951	$ 5.9514
Start batch production	10+	100+	500+	1000+	2000+

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(7917) Minimum order quantity(10)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/number of contacts: 1

Technical parameters/polarity: Female

Technical parameters/line gauge: 14AWG ~ 20AWG

Technical parameters/Contact electroplating: Gold

Technical parameters/rated current: 19 A

Technical parameters/rated current (Max): 19 A

Technical parameters/operating temperature (Max): 105 ℃

Technical parameters/operating temperature (Min): -55 ℃

Technical parameters/rated voltage (Max): 600 VAC

Technical parameters/rated voltage: 600 V

Encapsulation parameters/installation method: Through Hole

Encapsulation parameters/Encapsulation: -

External dimensions/length: 19.68 mm

External dimensions/width: 4.31 mm

External dimensions/height: 4.31 mm

External dimensions/packaging: -

Physical parameters/contact material: Brass

Other/Product Lifecycle: Active

Other/Packaging Methods: Bag

Other/Manufacturing Applications: Portable equipment, lighting, industrial, HVAC, power, consumer electronics, industrial, commercial, power supply

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/ELV standards: Compliant

Compliant with standards/REACH SVHC standards: No SVHC

Compliant with standard/REACH SVHC version: 2015/06/15

Customs information/ECCN code: EAR99

Customs information/HTS code: 8538908040

Alternative material

	Model	Brand	Similarity	Encapsulation	Introduction	Data manual

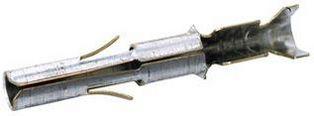

	350536-7	Tyco Electronics	完全替代		Mate-N-Lok 触点，用于密封连接器用于安装 Mate-N-Lock 系列公和母连接器封装，可替代标准触点插入式触点分为两种类型：一是固定类型，与 2 至 4 路封装一起使用；二是分离类型，建议与 6 到 15 路封装一起使用，以减少连接器插入力无孔引脚用来阻止孔包含触点单独提供用于 Mate-N-Lok 密封连接器的工具，参见库存号366-2055	PDF
	350550-6	TE Connectivity	功能相似	-	Mate-N-Lok 选择性镀金 (30) 20-14 AWG 插座接触端子	PDF
