Technical parameters/rated voltage (DC): 350 V
Technical parameters/tolerances: ±1 %
Technical parameters/rated power: 0.6 W
Technical parameters/resistance: 150 Ω
Technical parameters/resistance deviation: ±1 %
Technical parameters/operating temperature (Max): 155 ℃
Technical parameters/operating temperature (Min): -55 ℃
Technical parameters/rated voltage: 350 V
Encapsulation parameters/installation method: Through Hole
Encapsulation parameters/Encapsulation: Axial lead
External dimensions/length: 6.2 mm
External dimensions/diameter: Φ2.30mm
External dimensions/foot length: 28 mm
External dimensions/packaging: Axial lead
Physical parameters/operating temperature: -55℃ ~ 155℃
Physical parameters/temperature coefficient: ±50 ppm/℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Ammo Pack
Other/Minimum Packaging: 4000
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: lead-free
Compliant with standards/ELV standards: Compliant
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standards/military grade: Yes
Compliant with standard/REACH SVHC version: 2015/06/15
Customs information/ECCN code: EAR99
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

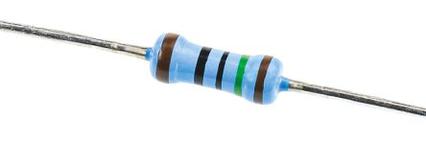

MBB02070C1500FCT00
|
VISHAY | 类似代替 | - |
0.6W MBB 0207 系列（0 → 910Ω） 专业薄膜引线式电阻器 额定功耗高达 1W 极佳的整体稳定性：0.25 类 宽专业范围：0.22Ω 至 22MΩ 无铅 (Pb) 端接电线 纯锡镀层与无铅和含铅焊接工艺兼容 应用：工业、电信、医疗设备和汽车 70°C 时功率 | 0.6W ---|--- 电阻容差 | ±1% 温度系数 | ±50ppm/°C 工作温度 | \- 55 ° C？+155 ° C 极限元件电压 | 300V 直流 绝缘电阻 | 1000 MΩ 主体长度 | 6.3 mm 主体直径 | 2.5 mm 引线直径 | 0.6mm ### 轴向 - 0.5 - 0.75W 与零欧姆连接 高稳定性金属膜电阻器。 极低的电流噪声级别，带有低温度系数和低容差。
|
||
MRS25000C1500FRP00
|
VISHAY | 类似代替 | 轴向引线 |
通孔电阻器, 150 ohm, MRS25系列, 600 mW, ± 1%, 轴向引线, 350 V
|
||
MRS25000C1500FRP00
|
Vishay Semiconductor | 类似代替 | Axial |
通孔电阻器, 150 ohm, MRS25系列, 600 mW, ± 1%, 轴向引线, 350 V
|
