Technical parameters/number of contacts: 120
Technical parameters/Contact electroplating: Gold, Tin over Nickel
Technical parameters/insulation resistance: 500 MΩ
Technical parameters/number of rows: 2
Technical parameters/direction: Vertical
Technical parameters/Flammability level: UL 94 V-0
Technical parameters/number of pins: 120
Technical parameters/rated current (Max): 0.5A/contact
Technical parameters/operating temperature (Max): 85 ℃
Technical parameters/operating temperature (Min): -40 ℃
Technical parameters/rated voltage (Max): 100 VAC
Technical parameters/Contact resistance (Max): 30 mΩ
Encapsulation parameters/installation method: Surface Mount
External dimensions/height: 3.75 mm
Physical parameters/shell color: Natural
Physical parameters/contact material: Copper Alloy
Physical parameters/operating temperature: -40℃ ~ 85℃
Other/Product Lifecycle: Active
Other/Packaging Methods: Tube
Other/Manufacturing Applications: Signal
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: Lead Free
Compliant with standards/ELV standards: Compliant
Customs information/ECCN code: EAR99
Customs information/HTS code: 8536694040
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

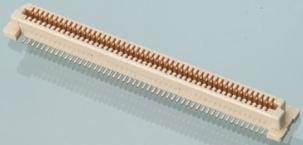

61082-121400LF
|
FCI Electronics | 功能相似 | Surface Mount |
0.8mm Bergstak® 系列 这些 FCI Bergstk® 高密度 0.8mm 节距表面安装连接器用于板到板堆叠应用，可以节省空间。 刀片线束触头允许"剥离"并可防止"残断" ### 0.8mm 电路板到电路板 - FCI 来自 FCI 的 Bergstak® 系统是高密度平行板到板连接器，可配置为各种不同印刷电路板堆叠高度。 这些 Bergstak® 连接器极化、有大引入线角度、带精确触点定位，确保精确匹配校准和可靠性。
|
