Technical parameters/rated voltage (DC): 63.0 V
Technical parameters/capacitors: 120 µF
Technical parameters/Equivalent series resistance (ESR): 0.05 Ω
Technical parameters/tolerances: ±20 %
Technical parameters/Ripple current: 930 mA
Technical parameters/operating temperature (Max): 105 ℃
Technical parameters/operating temperature (Min): -40 ℃
Technical parameters/rated voltage: 63 V
Package parameters/number of pins: 2
Encapsulation parameters/Encapsulation: the entire volume
Packaging parameters/pin spacing: 5 mm
External dimensions/height: 20 mm
External dimensions/diameter: 8.00 mm
External dimensions/packaging: the entire volume
External dimensions/pin spacing: 5 mm
Physical parameters/operating temperature: -40℃ ~ 105℃
Other/Product Lifecycle: Unknown
Other/Packaging Methods: Tape & Reel (TR)
Other/Minimum Packaging: 1000
Other/Lifespan (hours): 9000h @105℃
Other/Manufacturing Applications: Consumer electronics, industrial, power management, portable devices
Compliant with standards/RoHS standards: RoHS Compliant
Compliant with standards/lead standards: PB free
Compliant with standards/REACH SVHC standards: No SVHC
Compliant with standard/REACH SVHC version: 2015/06/15
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

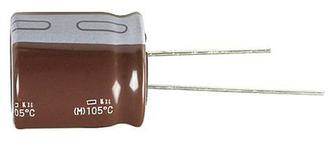

EEUFR1J121L
|
Panasonic | 完全替代 | 直插 |
FR 系列 35 V 到 63 V Panasonic FR 系列 A 型电解电容器具有低 ESR（符合 FM 系列）。 这些径向电容器在 +105°C 时的耐受性可达 5000 小时至 10000 小时（取决于盒体尺寸）。 高可靠性 长寿命 低阻抗 高波纹电流 ### 应用 Panasonic FR 系列 A 型电解电容器凭借其高可靠性，推荐用于工业仪器。 请注意，它们不适合汽车应用。 ### 径向 105°C
|
