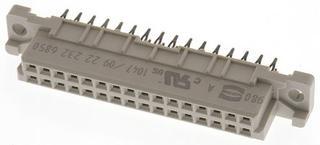

Model 09222326850
Description Harting DIN 41612 The supplementary type 2B backplane signal connector Harting DIN 41612 is designed for printed circuit board applications, with a maximum of 2A per contact. The DIN 41612 supplementary type 2B printed circuit board backplane signal connector is wear-resistant and durable, with a long mating life, providing an economical solution for many electronic signal connector design applications. Working temperature -55 to+125 ° C, maximum 2A test voltage per contact 1kV, contact resistance up to 20m Ω, thermoplastic resin glass fiber filled copper alloy contact termination method - welding # # # DIN41612- series DIN 41612 connectors are used to interconnect all 19in. Eurocard bracket systems. Contact Materials: Grade 1 and Grade 2: | Brass | | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Size (mm) --- | Fixed center | Total length | Width | Thickness | | | Type B | Type C | Plug | 88.9x2.5 diameter | 94 | 8.5 | 11.1 | 13 socket wrench | 90x2.8 diameter | 95 | 8.1 | 10.6 | 11.6
Product QR code
Delivery time
Packaging method Box
Standard packaging quantity 1
39.47  yuan 39.47yuan
1+:
$ 48.1522
10+:
$ 45.3894
100+:
$ 43.3370
250+:
$ 43.0212
500+:
$ 42.7055
1000+:
$ 42.3502
2500+:
$ 42.0345
5000+:
$ 41.8371
Quantity
1+
10+
100+
250+
500+
Price
$48.1522
$45.3894
$43.3370
$43.0212
$42.7055
Price $ 48.1522 $ 45.3894 $ 43.3370 $ 43.0212 $ 42.7055
Start batch production 1+ 10+ 100+ 250+ 500+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(2709) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 32

Technical parameters/polarity: Female

Technical parameters/rated current: 2 A

Technical parameters/insulation resistance: 1000000 MΩ

Technical parameters/number of rows: 2

Technical parameters/number of pins: 32

Technical parameters/rated current (Max): 2 A

Technical parameters/operating temperature (Max): 105 ℃

Technical parameters/operating temperature (Min): -40 ℃

Technical parameters/Contact resistance (Max): 15 mΩ

Encapsulation parameters/installation method: Through Hole

External dimensions/height: 11.6 mm

Physical parameters/contact material: Copper Alloy

Physical parameters/operating temperature: -40℃ ~ 105℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Box

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free
