Model 8-338069-8

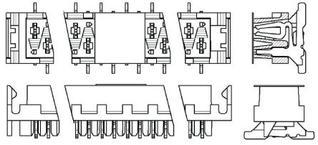

Description Micro-MaTch Micro Macch SMD motherboard mounted patch connector, featuring a 1.27mm centerline and a red PA 4.6 polarized housing. These Micro MaTch SMD female connectors have phosphor bronze nickel plated polished contacts, which also have additional springs to accommodate thermal expansion between the housing and the printed circuit board, thereby reducing tension on the solder joints. These Micro MTch SMD motherboard mounted patch connectors are also equipped with locking latches (see part number x-338069-x). Top mounted polarized casing to prevent mismatches
Product QR code
Brand: TE Connectivity
Packaging
Delivery time
Packaging method Tape & Reel (TR)
Standard packaging quantity 1
19.11  yuan 19.11yuan
5+:
$ 22.3587
50+:
$ 21.4032
200+:
$ 20.8681
500+:
$ 20.7344
1000+:
$ 20.6006
2500+:
$ 20.4477
5000+:
$ 20.3522
7500+:
$ 20.2566
Quantity
5+
50+
200+
500+
1000+
Price
$22.3587
$21.4032
$20.8681
$20.7344
$20.6006
Price $ 22.3587 $ 21.4032 $ 20.8681 $ 20.7344 $ 20.6006
Start batch production 5+ 50+ 200+ 500+ 1000+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(5682) Minimum order quantity(5)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of contacts: 18

Technical parameters/Contact electroplating: Tin over Nickel

Technical parameters/rated current: 1.5 A

Technical parameters/number of rows: 2

Technical parameters/direction: Vertical

Technical parameters/Flammability level: UL 94 V-0

Technical parameters/number of pins: 18

Technical parameters/rated current (Max): 1.5A/contact

Technical parameters/rated voltage (Max): 100 VDC

Technical parameters/rated voltage: 100 VDC

Technical parameters/Contact resistance (Max): 10 mΩ

Encapsulation parameters/installation method: Surface Mount

External dimensions/length: 27.4 mm

External dimensions/width: 5 mm

External dimensions/height: 5.3 mm

Physical parameters/shell color: Red

Physical parameters/color: Red

Physical parameters/contact material: Phosphor Bronze

Physical parameters/operating temperature: -40℃ ~ 105℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Tape & Reel (TR)

Other/Manufacturing Applications: Automobile, General Motors

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/ELV standards: Compliant

Customs information/ECCN code: EAR99

Customs information/HTS code: 8536698000
