Model 15250802601000

Description Harting Har-Flex Surface mount 90 ° socket This series of Harting Har Flex right angle surface mount female sockets is suitable for board to board applications. The performance level of these Har Flex right angled surface mounted female sockets is capable of engaging more than 500 times. The height above the board of these Har Flex right angled surface mounted female dual row sockets is 3.7 mm. The design of this Har Flex right angled surface mounted female dual row socket includes Ø 1.5 mm board fixing pins for accurate positioning and fixation on the printed circuit board. ###For suitable Har Flex needle sockets, please refer to stock number 774-4158 (typical, for 90 °) or 747-2525 (typical, for straight direction). ###Recognized UL 94-V0 # # # 1.27mm Harting Har Flex series connectors are a space saving, robust, and flexible solution suitable for various board to board applications using SMT technology. The Harting Har flex connector series provides continuous scalability through a uniform number of contacts (e.g. 6 to 100), which lays an ideal foundation for custom applications. The Har flex connector series can be used to design mezzanine cards, expansion cards, and main cards for board to board applications.

Brand: Harting Technology Group

Packaging SMD

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

1+:

$ 45.1583

10+:

$ 42.5673

100+:

$ 40.6425

250+:

$ 40.3464

500+:

$ 40.0502

1000+:

$ 39.7171

2500+:

$ 39.4210

5000+:

$ 39.2359

Price	$ 45.1583	$ 42.5673	$ 40.6425	$ 40.3464	$ 40.0502
Start batch production	1+	10+	100+	250+	500+

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(4399) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/number of contacts: 80

Technical parameters/polarity: Female

Technical parameters/rated current: 1 A

Technical parameters/insulation resistance: 10 GΩ

Technical parameters/number of rows: 2

Technical parameters/direction: Right Angle

Technical parameters/number of pins: 80

Technical parameters/rated current (Max): 1.4 A

Technical parameters/rated voltage: 150 V

Technical parameters/Contact resistance (Max): 25 mΩ

Encapsulation parameters/installation method: Surface Mount

Package parameters/number of pins: 80

Encapsulation parameters/Encapsulation: SMD

External dimensions/height: 3.7 mm

External dimensions/packaging: SMD

Physical parameters/shell color: Black

Physical parameters/color: Black

Physical parameters/contact material: Copper Alloy

Physical parameters/operating temperature: -55℃ ~ 125℃

Other/Product Lifecycle: Active

Other/Packaging Methods: Tape & Reel (TR)

Other/Manufacturing Applications: General

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free

Compliant with standards/REACH SVHC standards: No SVHC

Alternative material

	Model	Brand	Similarity	Encapsulation	Introduction	Data manual

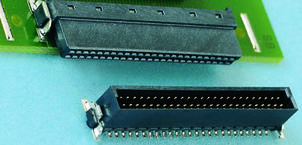

	154744	ERNI Electronics	类似代替	-	ERNI SMC 系列 1.27 mm 高速 SMT 直角连接器 SMC 系列 1.27 mm 节距高速 SMT 直角安装信号连接器，带紧凑型节省空间设计和高触点密度。这些 SMC 信号连接器提供高性能、高信号完整性和可靠性。这些 SMC 高速信号连接器的触点设计可提供连续阻抗剖面，实现高达 3 Gbit/s 的高传输速率。母连接器具有超可靠的双光束触点，可提供最大触点可靠性。这些触点的双面、双光束设计可提供低电阻，实现高电气性能，并且能够耐受多达 500 个配接应用。连接器外壳具有配接面极化，可防止错配和插入倒角，确保准确插入。连接器底部的定位销允许在焊接前在印刷电路板上精确定位。焊接支架可在印刷电路板上提供高保持力和吸收机械应力，形成坚固的 SMT 连接，并且可耐受高冲击和振动。这些 1.27 mm SMC 连接器具有- 55 至 +125°C 的宽工作温度范围，使其适合在各种环境中使用。这些 SMC 1.27 mm 连接器的设计使其适合用于全面自动化板组件。 ### 特点和优势温度范围：-55 → 125 °C 外壳材料：LCP UL 94 V-0 铜合金触点，接合区镀金，端接区镀锡夹子材料：镀锡铜合金紧凑型高密度设计超可靠的双光束触点设计高速信号传输率高达 3 Gbit/s 极化，确保精确配接定位销，用于印刷电路板放置焊接支架，用于安全固定印刷电路板广泛的工作温度范围适用于全面自动化板组件 ### 应用这些 SMC 1.27 mm 高速信号连接器可用于各行各业无屏蔽高速应用中的子卡和扩展卡应用中。这些行业包括工业、汽车、通信、医疗应用和消费应用 ### ERNI SMC 系列 1.27mm 板对板高速信号连接器工作电流 \| 1.2A，+20 ° C ---\|--- \| 0.9A，+70°C \| 0.6A，+100°C 测试电压，50Hz 1 分钟 \| 500V 有效电压触点/触点 \| 750V 有效电压触点/接地触点电阻 \| 绝缘电阻 \| >10MΩ 工作温度 \| -65°C 至 +125°C 机械寿命 \| >500 次插拔	PDF
