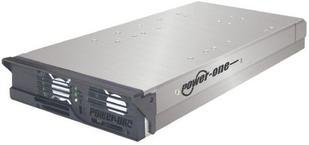

Model FXP1500-32G
Description 1800W, Universal Input, Rack mount Front Ends These front end power supplies have a wide input voltage range and use an IC2 managemnt interface for fan speed control, output voltage adjustment, output current limit setting and remote monitoring of power supply alarms and status indication. A highly efficient thermal design with internal-fan cooling permits use over wide termperature ranges and provides high reliability. The small dimensions of this power supply allow configuration of up to 3 units in a 1 U rack (up to 4500 W). These power supplies have AC and DC connections at the rear, provide for true hot-swap and can be used for redundant system applications. Mounting and interconnection of these power supplies is made easy through the use of FXR-3 racks (see stock numbers 713-3706 (for FXP1500-32G) and 713-3693 (for FXP1800-48G) Wide input voltage range 85-264 Vac Active current/load sharing Power factor corrected (PFC) IC2 interface for status monitoring, power supply enable, fan speed control Remote monitoring of power supply alarms with LED indication of AC Power-fail, DC output fail, over-temperature and fan-fail Adjustable output voltage: FXP1500-32G can be adjusted from 28-36 Vdc, FXP1800-48G can be adjusted from 44.2-51.8 Vdc High power density design Highly efficient topology Power factor correction to EN 61000-3-2 EMC meets EN 55022/CISPR 22 Class B (conducted) and Class A (radiated) Over-temperature, output over-voltage, and output over-current protection O-Ring circuit for true redundant operation Internal fan cooling Meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD) Subassemblies are pre-tested with 4.2 kVdc in accordance with EN50116 and IEC/EN60950 ### note For output mating connector see stock number 562-814,For interface adaptor see stock number 256-200,For power shelves see 713-3706 (for FXP1500-32G) and 713-3693 (for FXP1800-48G) ### Recognized TUV, CSA, UL, cUL # # # Standard EN 60950-1, UL 60950, CSA 60950 # # # Switch Mode - Power
Product QR code
Brand: BEL Power Solutions
Packaging
Delivery time
Packaging method
Standard packaging quantity 1
4734.62  yuan 4734.62yuan
1+:
$ 5208.0853
10+:
$ 5160.7391
25+:
$ 5137.0660
50+:
$ 5113.3928
100+:
$ 5089.7197
150+:
$ 5066.0466
250+:
$ 5042.3735
500+:
$ 5018.7004
Quantity
1+
10+
25+
50+
100+
Price
$5208.0853
$5160.7391
$5137.0660
$5113.3928
$5089.7197
Price $ 5208.0853 $ 5160.7391 $ 5137.0660 $ 5113.3928 $ 5089.7197
Start batch production 1+ 10+ 25+ 50+ 100+
Check the distribution price
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(4809) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/rated power: 1500 W

Technical parameters/number of output interfaces: 2

Technical parameters/output current: 1A, 46.9A

Technical parameters/output power: 1505 W

Technical parameters/isolation voltage: 4 kV

Technical parameters/Input voltage (AC Max): 264 V

Technical parameters/input voltage (AC Min): 85 V

Technical parameters/output current (Max): 46.9A, 1A

Technical parameters/input current (Min): 20 Arms

Technical parameters/rated power (Max): 1500 W

Technical parameters/operating temperature (Max): 70 ℃

Technical parameters/operating temperature (Min): 0 ℃

Technical parameters/input voltage: 85VAC ~ 264VAC

Encapsulation parameters/installation method: Rack

External dimensions/length: 333 mm

External dimensions/width: 142 mm

Physical parameters/weight: 2.8 kg

Physical parameters/operating temperature: 0℃ ~ 70℃

Other/Product Lifecycle: Obsolete

Other/Manufacturing Applications: ITE（Business)

Compliant with standards/RoHS standards: RoHS Compliant

Compliant with standards/lead standards: Lead Free
