Model SMCJ70CA-TP

Description Bidirectional 70V 1500W

Brand: Micro Commercial Components

Packaging SMC

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/rated voltage (DC):	70.0 V
Technical parameters/operating voltage:	70 V
Technical parameters/rated power:	1.50 kW
Technical parameters/breakdown voltage:	77.8 V\|77.8 V
Technical parameters/number of circuits:	1
Technical parameters/clamp voltage:	113 V
Technical parameters/test current:	1 mA
Technical parameters/peak pulse power:	1500 W
Technical parameters/minimum reverse breakdown voltage:	77.8 V
Technical parameters/operating temperature (Max):	175 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Technical parameters/operating temperature:	-55℃ ~ 175℃
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	SMC
Dimensions/Length:	7.11 mm
Dimensions/Width:	6.22 mm
Dimensions/Height:	2.62 mm
Dimensions/Packaging:	SMC
Physical parameters/operating temperature:	-55℃ ~ 175℃ (TJ)
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tape & Reel (TR)
Other/Manufacturing Applications:	General
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Customs information/ECCN code:	EAR99

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

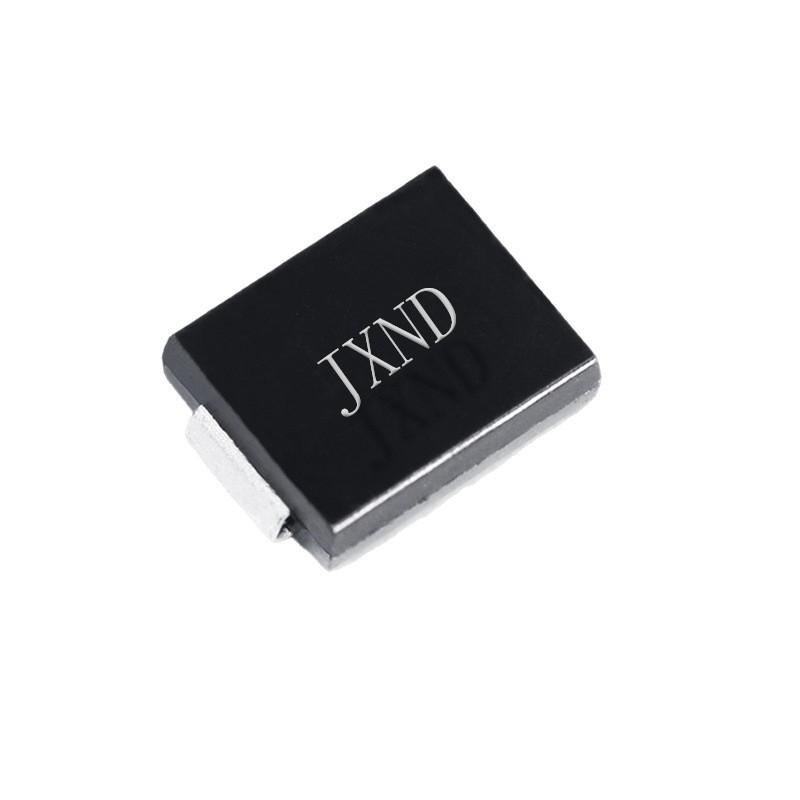

SMCJ70CA	JXND	功能相似	SMC	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Fairchild	功能相似	DO-214AB	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Jingdao	功能相似	SMC	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB
SMCJ70CA	ON Semiconductor	功能相似	DO-214AB	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Microsemi	功能相似	DO-214AB	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Meritek	功能相似	DO-214AB	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Taiwan Semiconductor	功能相似	DO-214AB	SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA	Multicomp	功能相似		SMCJ系列 108V 1.5kW 表面贴装双向瞬态电压抑制二极管 DO-214AB	PDF
SMCJ70CA-E3/57T	Vishay Semiconductor	功能相似	DO-214AB	VISHAY SMCJ70CA-E3/57T 二极管, TVS, 1.5KW, 70V, DO-214AB	PDF
SMCJ70CA-E3/57T	VISHAY	功能相似	DO-214AB	VISHAY SMCJ70CA-E3/57T 二极管, TVS, 1.5KW, 70V, DO-214AB	PDF
