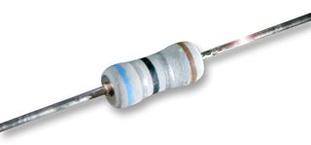

Warm reminder: The pictures are for reference only. The actual product may vary

Model ROX1SJ15R

Description 1W Power metal oxide film resistors, ROX1S series, axial TE Connectivity's ROX1S series power metal oxide film resistors can provide high power and adopt compact and space saving dimensions. The ROX1S series resistors are highly suitable for line protection applications, are fire-resistant, and can withstand overload conditions. These resistors are suitable for processing on automatic insertion equipment as well as cutting and bending machines. ###Features and advantages: Rated power at 70 ° C: 1W Resistance tolerance: ± 5% Temperature coefficient: ± 300ppm/° C Limit element voltage: 350V Overload voltage: 600V (maximum) Insulation resistance: 1000M Ω Operating temperature: -55 ° C →+235 ° C Body length: 9 mm Body diameter: 3 mm Lead length: 25 mm Lead diameter: 0.7 mm # # # Power oxide resistors, axial -1-3W ROX series resistors have a metal oxide film attached to high-quality alumina models. The quality of materials and processing allows for a reduction in physical dimensions to accommodate three power ratings with good long-term stability. The end cap and welding wire structure ensure high mechanical stability and strength. Specially formulated coatings can protect components from environmental conditions and withstand overload conditions without being damaged by flames or mechanical damage. Recommended for use in all applications where overload conditions will not cause combustion. Mark resistance values and tolerances using four band color codes according to IEC62. Rated at 70 ° C, horizontally installed in the atmosphere. Climate category 55/235/56.

Brand: TE Connectivity

Packaging 轴向引线

Delivery time

Packaging method Bulk

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(2880) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	350 V
Technical parameters/tolerances:	±5 %
Technical parameters/rated power:	1 W
Technical parameters/resistance:	15 Ω
Technical parameters/resistance deviation:	±5 %
Technical parameters/operating temperature (Max):	235 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Technical parameters/rated voltage:	350 V
Encapsulation parameters/installation method:	Through Hole
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	Axial lead
Dimensions/Length:	9 mm
Dimensions/Diameter:	Φ3.50mm
Dimensions/Foot Length:	28 mm
Dimensions/Packaging:	Axial lead
Physical parameters/operating temperature:	-55℃ ~ 155℃
Physical parameters/temperature coefficient:	±350 ppm/℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Bulk
Other/Minimum Packaging:	2000
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	lead-free
Compliant with standards/ELV standards:	Compliant
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2015/06/15
