Model P6SMB91A
Description Diode TVS Single Uni-Dir 77.8V 600W 2Pin SMB T/R
Product QR code
Brand: Bourns J.W. Miller
Packaging DO-214AA
Delivery time
Packaging method Tape & Reel (TR)
Standard packaging quantity 1
0.68  yuan 0.68yuan
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(6009) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/clamp voltage:

125 V



Technical parameters/test current:

1 mA



Technical parameters/peak pulse power:

600 W



Technical parameters/minimum reverse breakdown voltage:

86.5 V



Technical parameters/breakdown voltage:

86.5 V



Technical parameters/operating temperature (Max):

150 ℃



Technical parameters/operating temperature (Min):

-55 ℃



Technical parameters/operating temperature:

-55℃ ~ 150℃



Encapsulation parameters/installation method:

Surface Mount



Package parameters/number of pins:

2



Encapsulation parameters/Encapsulation:

DO-214AA



Dimensions/Length:

4.57 mm



Dimensions/Width:

3.94 mm



Dimensions/Height:

2.44 mm



Dimensions/Packaging:

DO-214AA



Physical parameters/operating temperature:

-55℃ ~ 150℃ (TJ)



Other/Product Lifecycle:

Active



Other/Packaging Methods:

Tape & Reel (TR)



Other/Manufacturing Applications:

General



Compliant with standards/RoHS standards:



Compliant with standards/lead standards:

Lead Free



The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual
P6SMB11A P6SMB11A Brightking 类似代替 2
瞬态电压抑制二极管 Transient Voltage Suppression Diodes
PDF

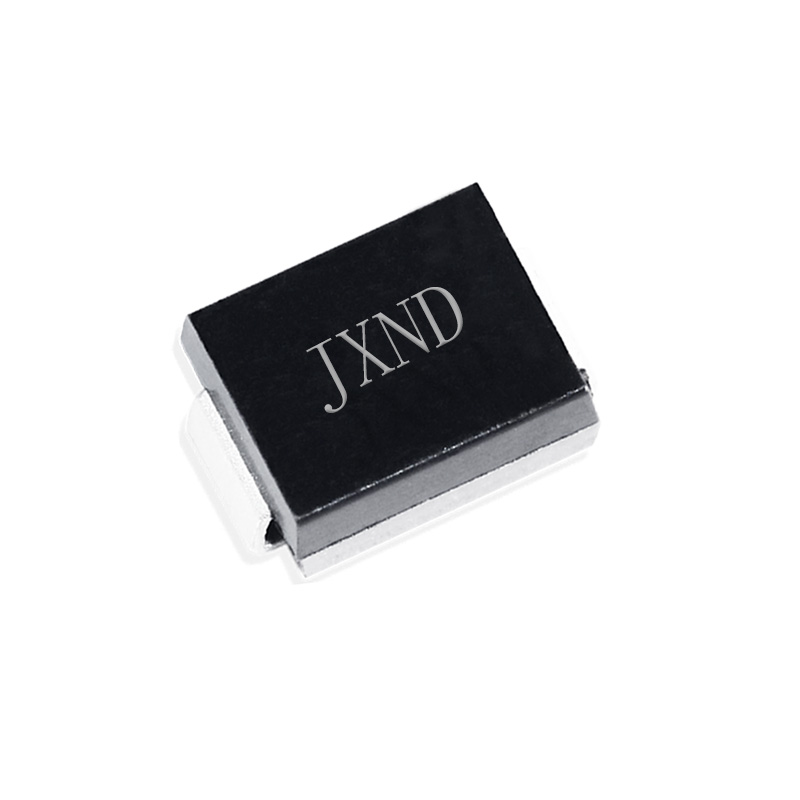

P6SMB11A P6SMB11A JXND 类似代替 SMB
